Rainbird  |  SKU: VORG9834037

Model Number: CPF100 - UPC : 077985612955

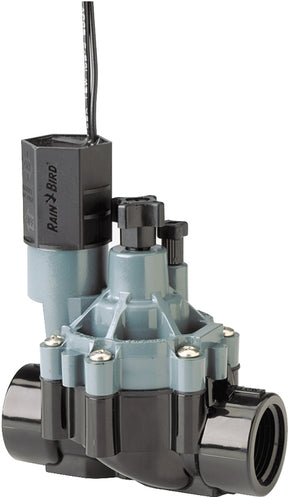

Rain Bird CPF100 Sprinkler Valve with Flow Control, 30 A, 24 V, 1 in, FNPT x FNPT, 0.2 to 22 gpm, Plastic Body

$24.99 $28.85
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • 1 in female pipe thread inlet and outlet inline irrigation valve
  • Buna-N diaphragm offers great performance in harsh water environments
  • Reliable, non-clogging design
  • Reverse flow design reduces stress on diaphragm for dependable operation
  • In-line design minimizes pressure loss of dirt and debris during installation and system start-up
  • Operates automatically or manually with manual bleed screw
  • Works with any standard sprinkler timer
  • Energy efficient, low power encapsulated solenoid with captured plunger

Description
Rain Bird manufactures only the highest quality in-line valves. Use in-line valves in locations where the use of a Pressure Vacuum Breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. In-line valves are installed below ground in a valve box down stream from the main line from a PVB or double check valve. In-line valves will not prevent back flow on their own and they need the help of a back flow prevention device.

Unit: EA

Additional Information

  • Body Material: Plastic
  • Connection Type: FNPT x FNPT
  • Current Rating: 30 A
  • Flow Rate: 0.2 to 22 gpm
  • Frequency Rating: 50/60 Hz
  • Nominal Size: 1 in
  • Pressure Rating: 15 to 150 psi
  • Softgoods material: Buna-N
  • Voltage Rating: 24 V


Application: For below ground with a separate constant pressure backflow prevention device
