Irwin  |  Our Item #: MORG9122169

Model Number: 326002 - UPC : 024721008718

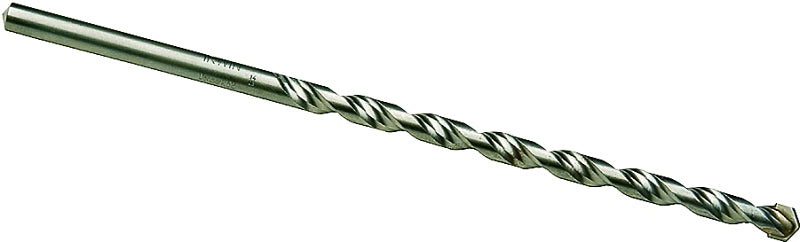

Irwin 326002 Rotary Hammer Drill Bit, 3/16 in Dia, 3-1/2 in OAL, Percussion, Twist Flute, 2-Flute, 3/16 in Dia Shank

Get special pricing! Apply for a business account today.

Apply Now
$4.93 $7.55
Shipping calculated at checkout.
35% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Fits all hammer drills with 3-jaw or Jacobs chuck
  • Patented impact guard protects the first knuckle with EVA foam padding
  • Signature 26 deg Taper Grind edge for optimum sharpness, precise cutting and easy sharpening
  • Copper braze material gives high heat-resistance for reduced tip loss
  • Chrome vanadium shaft through-hardened to 50-53HrC
  • Hot isostatically pressed to extend life and resist breakage
  • Up to 5X longer cutting life versus standard bi-metal blades

Description
Bit will fit all hammer drills with three-jaw or Jacobs chuck and features a chrome vanadium shaft through hardened to 50-53HrC, shot-peened, double-tempered finish, flute geometry removes dust from the hole quicker, copper braze material gives high heat-resistance. All tips made to ANSI specifications.
Unit: CD
UPC: 024721008718
Model Number: 326002

Additional Information

  • Applicable Materials: Masonry
  • Cutting Direction: Right Hand
  • Cutting Edge Material: Carbide
  • Diameter: 3/16 in
  • Finish: Double Tempered
  • Flute Length: 2 in
  • Flute Type: Twist
  • Material: Chrome Vanadium Steel
  • Number Of Flutes: 2
  • Overall Length: 3-1/2 in
  • Point Type: Diamond
  • Quick Change Shank: No
  • Shank Diameter: 3/16 in
  • Shank Length: 1-1/2 in
  • Shank Type: Straight
  • Type: Percussion
