Connecticut Electric | Our Item #:
MORG8746638
Model Number: A120R - UPC : 094925018943

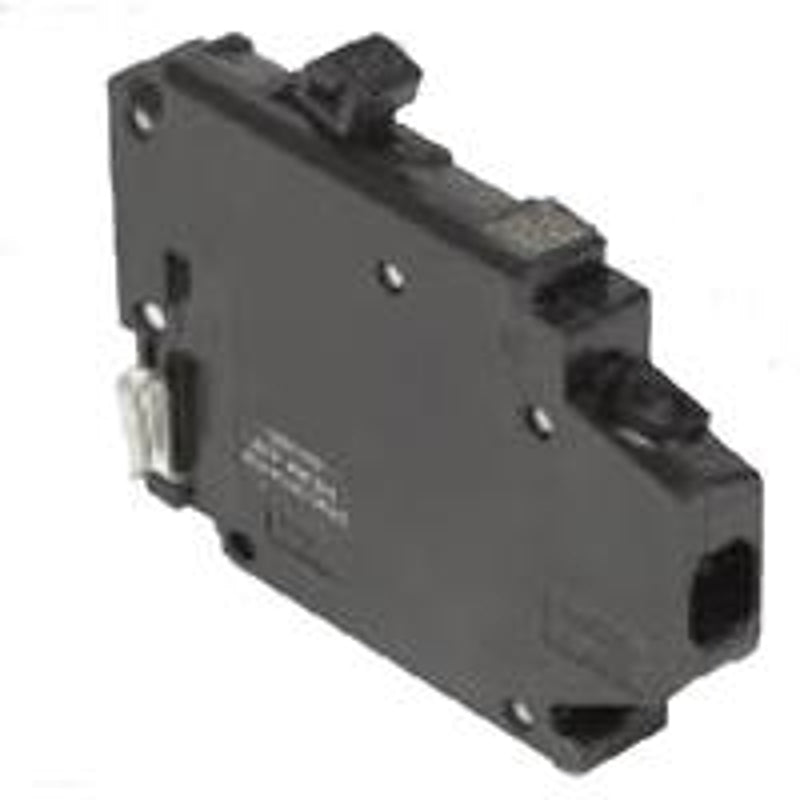

Challenger A120R Circuit Breaker, Type A, Type TBA, 20 A, 1-Pole, 120/240 V, Standard Trip, Plug Mounting, Black
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$40.61
Regular price
$57.45
Unit price
Unavailable
Shipping calculated at checkout.
Sold out
29% off
Notify me when back in stock
Challenger A120R Circuit Breaker, Type A, Type TBA, 20 A, 1-Pole, 120/240 V, Standard Trip, Plug Mounting, Black is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Connecticut Electric | Our Item #:
MORG8746638
Sale price
$40.61
Regular price
$57.45
Unit price
Unavailable
Shipping calculated at checkout.
Challenger A120R Circuit Breaker, Type A, Type TBA, 20 A, 1-Pole, 120/240 V, Standard Trip, Plug Mounting, Black is backordered and will ship as soon as it is back in stock.
Features
Description
Description
Requires 1/2 of one 1 in space. 120 V 10,000 AIC. HACR rated. "L" suffix means breaker attaches to the left hand side of the bus bar only. "R" suffix means breaker attaches to the right hand side of the bus bar only. Breakers should be bought in pairs to fill the 1 in space.
Unit: EA
UPC: 094925018943
Model Number: A120R
Unit: EA
UPC: 094925018943
Model Number: A120R
Additional Information
Additional Information
- Current Rating: 20 A
- Dimensions: 3.35 in L x 0.5 in W x 2.6 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 1
- Operating Frequency: 50/60 Hz
- Suitable for: Thomas and Betts Challenger Load Centers Kitchen Circuits Branch Circuits
- Terminal Type: Lug
- Trip Type: Standard
- Type: Type A Type TBA
- Voltage Rating: 120/240 V
- Wire Size: 14 to 4 AWG
