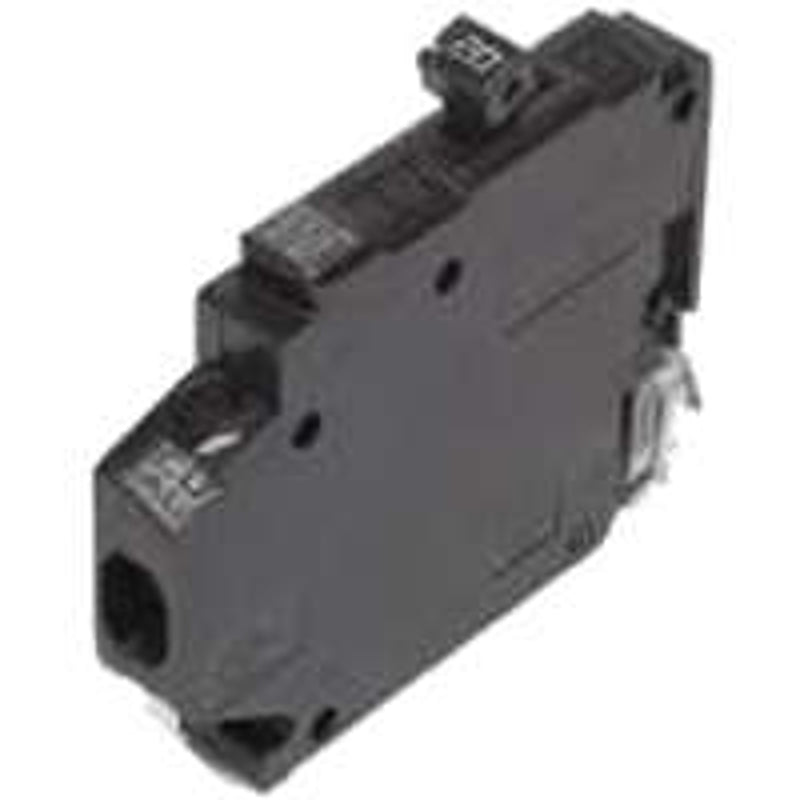

Challenger A130R Circuit Breaker, Type A, Type TBA, 30 A, 1 -Pole, 120/240 V, Standard Trip, Plug Mounting

Requires 1/2 of one 1 in space. 120 V 10,000 AIC. HACR rated. "L" suffix means breaker attaches to the left hand side of the bus bar only. "R" suffix means breaker attaches to the right hand side of the bus bar only. Breakers should be bought in pairs to fill the 1 in space.
Unit: EA
UPC: 094925021097
Model Number: A130R

• Current Rating: 30 A
• Dimensions: 3-1/4 in L x 1/2 in W x 2-1/2 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Operating Frequency: 50/60 Hz
• Suitable for: Thomas and Betts Challenger Load Centers Well Pumps Bathroom Heaters and Electric Motors
• Trip Type: Standard
• Type: Type A Type TBA
• Voltage Rating: 120/240 V
• Wire Size: 10 to 2 AWG
