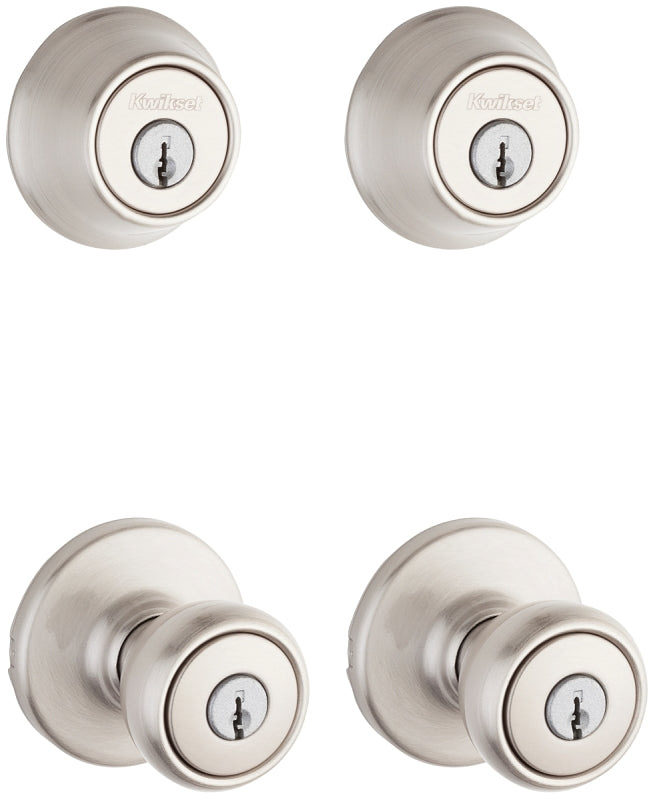

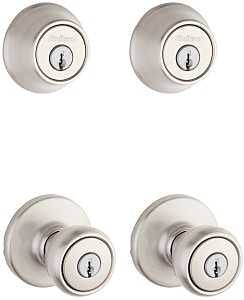

Kwikset 242T 15 K2 CP Combination Lockset, Knob Handle, Tylo Design, Satin Nickel, 3 Grade, Metal

Includes two Tylo entry knob locksets and two #660 deadbolts. Knobs locked or unlocked by key outside or turn button inside. Deadbolt operated by key outside and thumb turn inside. Security knobs feature full 1 in solid core throw bolt, all-metal mechanisms, anti-pry shield 5-pin system. Door prep 2-1/8 in cross bore, 1 in edge bore, 1 in x 2-1/4 in latch face. Backset of 2-3/8 in standard and adjustable 2-3/8 in and 2-3/4 in optional. Door thickness 1-3/8 to 1-3/4 in. Cylinder 5-pin. Faceplates of 1 in x 2-1/4 in round corner. Strikes of 2-1/4 in full lip. Bolt knob 1/2 in throw, deadbolt 1 in throw. Reversible for right or left-hand doors. ANSI/BHMA knob Grade 3, deadbolt Grade 3.

Unit: CD

• Backset Size: 2-3/8 to 2-3/4 in
• Cylinder Type: 5-Pin
• Deadbolt Latch Throw: 1 in
• Design: Tylo
• Door Handing: Left Right
• Door Thickness: 1-3/8 to 1-3/4 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Satin Nickel
• Handle Type: Knob
• Includes: (2) Tylo Entry Locksets Keyed Alike and (2) 660 Single-Cylinder Deadbolts
• Key Type: Keyed Alike
• Keyway Type: K2
• Knob Diameter: 1-7/8 in
• Material: Metal
• Number of Cylinders: 1
• Security Grade: 3
• Strike Size: 1 x 2-1/4 in
• Strike Type: Round Corner

Application: For knobs locked or unlocked by key outside or turn button inside, deadbolt operated by key outside and Inside
