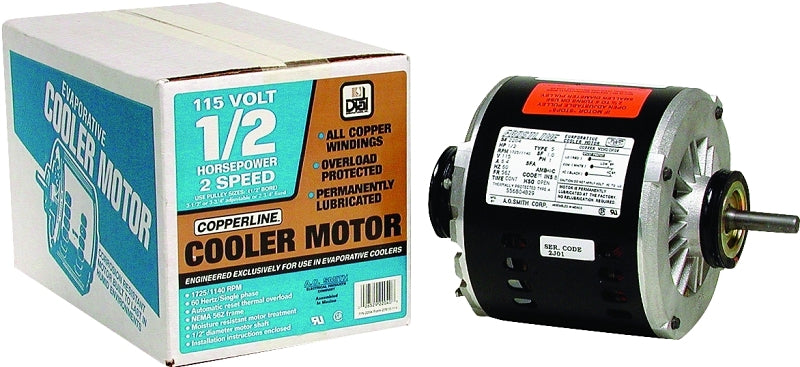

Dial 2204 Evaporative Cooler Motor, 0.5 hp, 1-Phase, 115 V, 1/2 in Dia Shaft, Clockwise Shaft Rotation

High efficiency, high-temperature insulation system. Capable of withstanding temperatures over 300 deg F. Reduces motor failures due to heat aging. Premium moisture-resistant insulation system. Styrenated epoxy coating on rotor prevents rust build-up and extends the life of the motor. 115 V, all copper windings, no base, 56Z frame. Auto-reset thermal overload protection. Great starting switch features. Heavy-duty bronze bearing. Mechanically and electrically approved for evaporative cooler applications. Label and instructions in English and Spanish. UL approved construction.

Unit: EA

• Bearing Type: Ball
• Current Rating: 6.3 A
• Frequency Rating: 60 Hz
• HP Rating: 0.5 hp
• Material: Steel
• Number of Phases: 1
• Shaft Diameter: 1/2 in
• Shaft Rotation: Clockwise
• Speed Rating: 1725 1140 rpm
• Temperature Rating: 300 deg F
• Voltage Rating: 115 V
