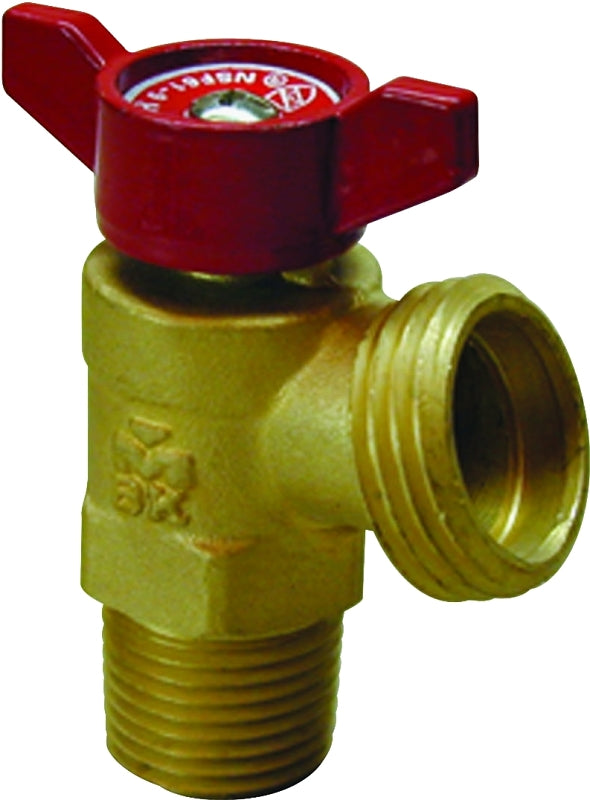

B & K Quarter Master ProLine Series 102-054HN Boiler Drain Valve, 3/4 in Connection, MPT x FIP, 125 psi Pressure

Easy quarter turn on/off operation regulates water flow from a trickle to wide open. Compact, low-lead compliant, operates easily for long life. Large flow rate for use as any general-purpose hose connection outlet for external water service. 60% copper alloy brass construction with chrome-plated brass ball, Teflon seats and rust-resistant handle. 125 psi max working pressure. 3/4 in hose thread outlet. IAPMO NSI/NSF 61 approved. Pipe threads comply with ANSI B1.20.1, hose threads comply with ANSI B1.20.7, solder (sweat) ends comply with ANSI-B16.18. Bin box display packaging. Each valve has a data tag with installation instructions and is bar-coded for easy identification. Carton.
Unit: EA
UPC: 032888000421
Model Number: 102-054HN

• Actuator Type: Quarter-Turn
• Body Material: Brass
• Connection Size: 3/4 in
• Connection Type: MPT x FIP
• Finish: Chrome
• Pressure Rating: 125 psi
• Temperature Rating: -20 to 180 deg F
• Trim Material: Iron
