Sharkbite  |  SKU: VORG7135601

Model Number: 23808-0045 - UPC : 697285238084

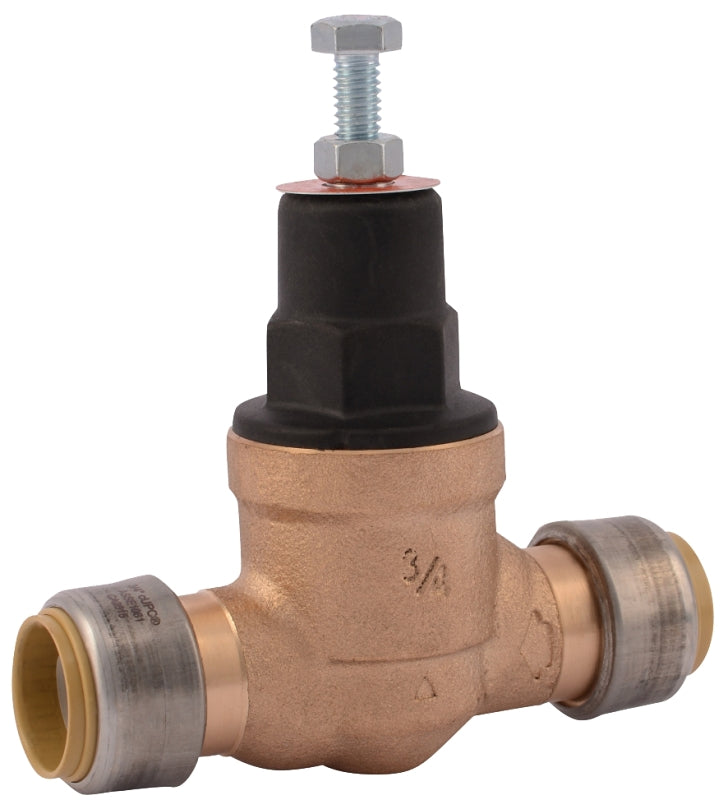

SharkBite EB45 Series 23808-0045 Pressure Regulating Valve, 3/4 in Connection, Push-Fit, Bronze Body

$67.04 $77.15
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Modular cartridge design reduces the number of parts requiring service
  • Rugged bronze body offers excellent reliability, improved user safety
  • Designed for small and economic considerations
  • By-pass mechanism integral with the cartridge

Description
The EB-45 Series is a lead-free one 1/2 cartridge based pressure reducing and regulating valve with a bronze body. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge based valve. The EB-45 is assembled using modular construction methods and features end connections threaded for both FIP and union in 1 in through 2 in sizes. The EB-45 is intended for use where supply line pressure does not exceed 300 psi (400 psi 1/2 in, 3/4 in and 1 in). The EB-45 pressure regulators are supplied by the factory with a standard delivery setting of 45 psi. The outlet pressure can be adjusted from 10 to 70 psi without changing the spring. This regulator is suited for either cold or hot (to 180 deg F) water service.

Unit: EA

Additional Information

  • Body Material: Bronze
  • Connection Size: 3/4 in
  • Connection Type: Push-Fit
  • Dimensions: 4.48 in L x 5.12 in H
  • Media: Water
  • Operating Pressure: 200 psi
  • Softgoods material: EPDM/Polyphenylene
  • Temperature Rating: 33 to 180 deg F
  • Trim Material: Iron/Steel


Application: For indoor or outdoor use
