Eaton Wiring Devices  |  Our Item #: MORG7130248

Model Number: 2836-BOX - UPC : 032664325304

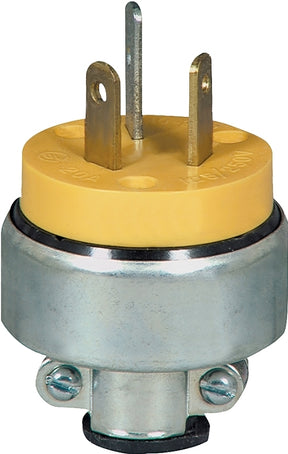

Eaton 2836-BOX Power Plug, 3-Pole, 30 A, 125 V, Screw, NEMA: NEMA 10-20P, Yellow

Get special pricing! Apply for a business account today.

Apply Now
$8.57 $13.09
Shipping calculated at checkout.
35% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Armored housing resists abuse and is automatically grounded
  • Solid brass plug blades are firmly embedded in body
  • Terminals in individual chambers to positively insulate conductors
  • Heavy-duty design and construction
  • Matching receptacle 805

Description
Commercial-grade, armored housing resists abuse. Solid brass plug blades are firmly embedded in body. Terminals in individual chambers to positively insulate conductors. Accepts #14 - #10 AWG wire. NEMA 10-20P. UL498 Listed, file no. E15012; NOM certified. Temperature rating: -20 to +75 deg C maximum continuous.
Unit: EA
UPC: 032664325304
Model Number: 2836-BOX

Additional Information

  • Cable/Wire Size: 14 to 10
  • Color: Yellow
  • Connection Type: Screw
  • Current Rating: 30
  • Dimensions: 1.93 in L x 1.87 in W x 1.65 D
  • Grounding Type: Non-Grounded
  • Material: PVC
  • NEMA Configuration: NEMA 10-20P
  • Number of Poles: 3
  • Number Of Wires: 3
  • Operating Temperature: -20 to 75
  • Type: Heavy-Duty
  • Voltage Rating: 125
