Bussmann | Our Item #:
MORG7116452
Model Number: BP/FRN-R-50ID - UPC : 051712237147

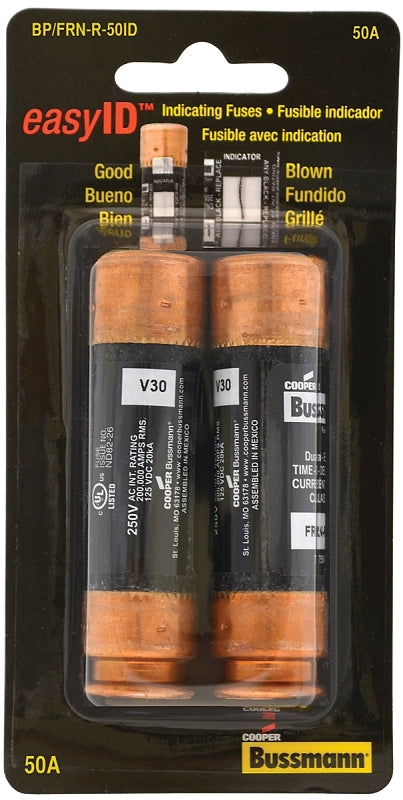

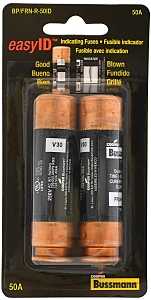

Bussmann BP/FRN-R-50ID Time Delay Fuse, 50 A, 250 V, 20, 200 kA Interrupt
Sale price
$28.04
Regular price
$32.35
Unit price
Unavailable
Shipping calculated at checkout.
13% off
Bussmann BP/FRN-R-50ID Time Delay Fuse, 50 A, 250 V, 20, 200 kA Interrupt is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Bussmann BP/FRN-R-50ID Time Delay Fuse, 50 A, 250 V, 20, 200 kA Int...
Sale price
$28.04
Regular price
$32.35
Unit price
Unavailable
Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from 1-phase on 3-phase systems
- Simplifies and improves blackout prevention
- Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance, short circuit and overload protection
- The overload element provides protection against low level overcurrent of overloads
- Offer consumers the additional advantage of blown fuse status that makes finding the open fuse easier and faster
Description
Description
Bussmann series Fusetron cartridge fuses are 23% more energy-efficient and offer the ideal time delay performance. Their dual-element feature allows closer sizing to load for excellent protection of motors and transformers. These Class RK5 fuses with a 200 kA interrupting rating can be used in a broad range of applications. When sized correctly, they help protect motors from burnout caused by overloads or single phasing. The time delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present. In addition, the dual-element design opens in as little as 0.004 secs if the fuse experiences short circuit conditions. All fuses are UL listed Class R (IR: 200 kA). Groove in end cap or notch in knife blade permit the fuse to be used in only Class H, Class K or Class R fuse blocks.
Unit: CD 2
UPC: 051712237147
Model Number: BP/FRN-R-50ID
Unit: CD 2
UPC: 051712237147
Model Number: BP/FRN-R-50ID
Additional Information
Additional Information
- Current Rating: 50 A
- Diameter: 13/16 in
- Element Type: Dual
- Indicator Type: Indicating
- Interrupt Rating: 20 200 kA
- Length: 3 in
- Terminal Type: Ferrule
- Type: Current Limiting
- Voltage Rating: 250 V
