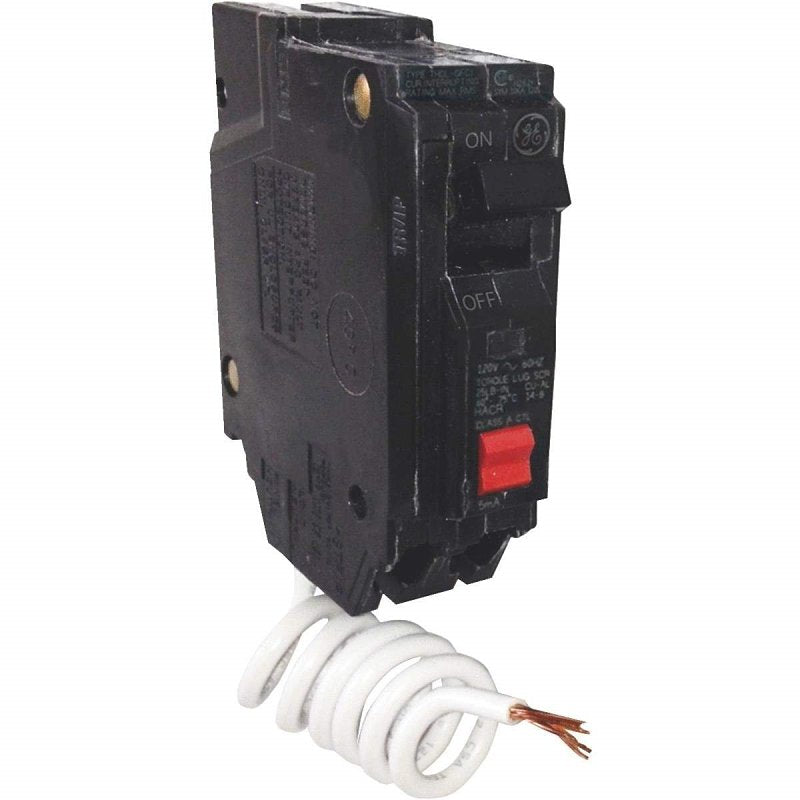

GE THQL1120GFTP Feeder Circuit Breaker, Thermal Magnetic, 20 A, 1-Pole, 120 V, Non-Interchangeable Trip, Plug

Tin plated copper stab to create a reliable, permanent and corrosion-resistant connection. Ensures its ground circuitry is functioning properly by automatically running diagnostic testing on a periodic basis. Should a problem be detected, the circuit breaker will trip and will need to be replaced. Unit provides protection against overloads, short circuits and ground faults. Class A 5 mA ground fault circuit interrupter. Wire range is #14 to 8 AWG CU/#12 to 8 AWG AL. UL listed. 4-1/2 in H x 1-1/4 in W x 3 in depth, 0.479 lb.
Unit: EA
UPC: 783164700114
Model Number: THQL1120GFTA

• Actuator Type: Quick-Make Quick-Break
• Current Rating: 20 A
• Frame Type: Q-Line
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Operating Frequency: 50/60 Hz
• Operating Temperature: 60 to 75 deg C
• Suitable for: Reverse Feed
• Terminal Type: Screw Clamp
• Trip Type: Non-Interchangeable
• Type: Thermal Magnetic
• Voltage Rating: 120 V
• Wire Size: 14 to 8 12 to 8 AWG
