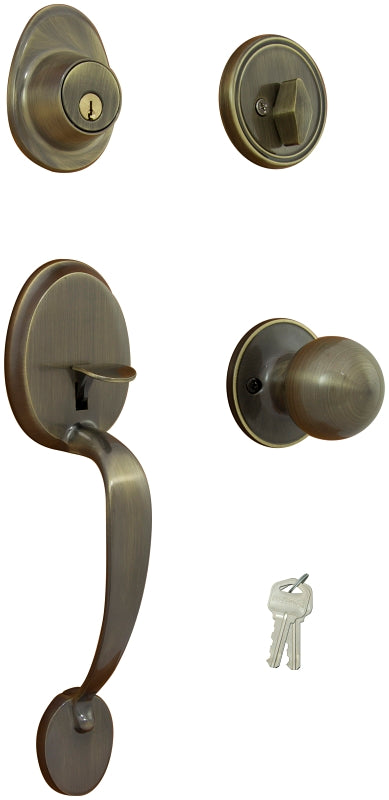

ProSource Handleset, 3 Grade, Keyed Key, Brass, Antique Brass, 2-3/8 x 2-3/4 in Backset, KW1 Keyway

The keyless handleset has a forged solid brass full handle and interior knob with single cylinder deadbolt. The latch bolt is operated by thumbpiece outside and grip inside and the deadbolt is operated by key outside and turn piece inside.
Unit: CD
UPC: 045734656666
Model Number: S7831-PS

• Backset Size: 2-3/8 x 2-3/4 in
• Center to Center: 5-1/2 in
• Commercial/Residential: Residential
• Cross Bore Diameter: 2-1/8 in
• Cylinder Type: 5-Pin
• Deadbolt Latch Throw: 1 in
• Design: Handleset
• Dimensions: 423 x 400 x 468 mm
• Door Thickness: 1-3/8 to 1-3/4 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Antique Brass
• Grip Center to Center: 8-5/8 in
• Interior Handle Type: T3
• Key Type: Keyed
• Keyway Type: KW1
• Latch Type: 6-Way
• Material: Brass
• Number of Cylinders: 1
• Plain bolt Latch Throw: 12.5 mm
• Plainbolt Latch Throw: 12.5 mm
• Projection Size: 1 in Deadlock 1/2 in Plain latch
• Security Grade: 3
• Strike Size: 44.8 x 57 mm Knob 25.4 x 57 mm Deadbolt mm
• Strike Type: Radius Corner
• Suitable for: For Use on Exterior Doors Where Keyed Entry and Security is Needed
