CUTLER-HAMMER | SKU:
VORG6859417
Model Number: BD2030 - UPC : 786676369305

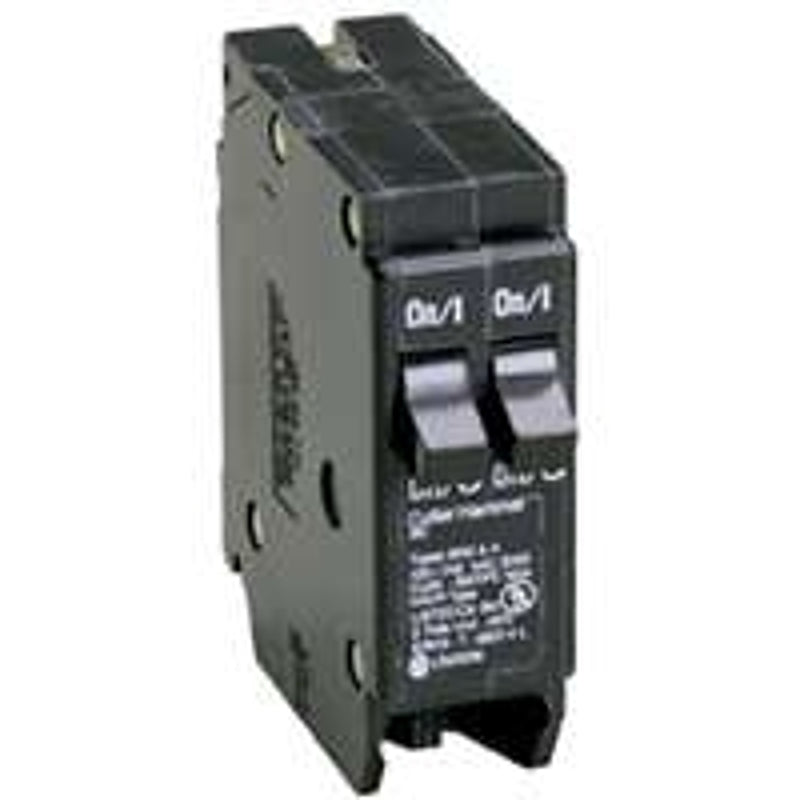

Cutler-Hammer BD2030 Circuit Breaker with Rejection Tab, Duplex, Type BD, 20/30 A, 1 -Pole, 120 V, Plug Mounting
$16.26
$18.79
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Cutler-Hammer BD2030 Circuit Breaker with Rejection Tab, Duplex, Type BD, 20/30 A, 1 -Pole, 120 V, Plug Mounting is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Features
Description
Description
Switching duty rating, duplex type breaker requires 1 in per breaker. Thermal magnetic 40 deg C breakers have rejection tab feature, allows only 42 circuits in the panel in compliance with NEC article 384-15. Interchangeable will replace Bryant, Challenger and Westinghouse. Type BR 120/240 V. 10,000 AIR. 1 in per breaker.
Additional Information
Additional Information
- Actuator Type: Magnetic Thermal
- Current Rating: 20/30 A
- Dimensions: 3.1 in L x 0.98 in W x 2.89 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 1
- Number Of Spaces: 1
- Operating Frequency: 50/60 Hz
- Operating Temperature: 40 deg C
- Suitable for: Overload and Short Circuit Protection of Home Electrical System
- Terminal Type: Feed-Thru
- Trip Type: Instantaneous
- Type: Duplex Type BD
- Voltage Rating: 120 V
- Wire Size: 14 to 4 AWG
Application: For overload and short circuit protection of home electrical system
