Watts  |  SKU: VORG6857346

Model Number: 100XL-125 - UPC : 098268000023

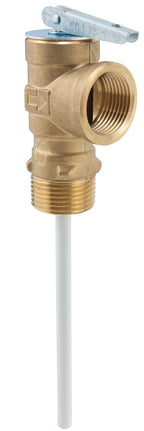

Watts 100XL-125 Relief Valve, 3/4 in, MNPT x FNPT, Brass Body

$26.77 $39.45
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

    Description
    Used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 Btu/hr. Features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. ASME rated and CSA listed. Temperature relief is 210 deg F (99 deg C), pressure relief range is 75 to 150psi (5.2 to 10.3 bar).

    Unit: EA

    Additional Information

    • Body Material: Brass
    • Connection Type: MNPT x FNPT
    • Nominal Size: 3/4 in
    • Operating Pressure: 75 to 150 psi
    • Temperature Rating: 210 deg F


    Application: For water heater and hot water storage tank
