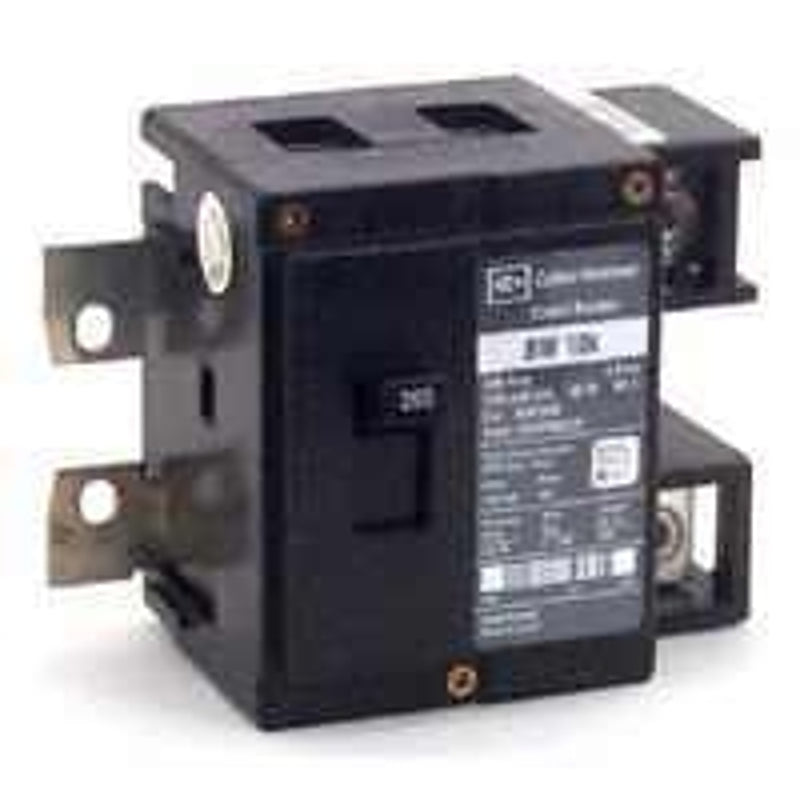

Cutler-Hammer BW2200 Circuit Breaker, Type BW, 200 A, 2 -Pole, 120/240 V, Plug Mounting

Replaces main breaker on 200 A type BR load centers. Includes main breaker, mounting screws, two bus torque nuts and instructions. For field installed mains. #2 to 300 kcmil wire range. 120/240 VAC, 10,000 AIR.

• Actuator Type: Magnetic Thermal
• Current Rating: 200 A
• Dimensions: 3 in L x 2 in W x 6-1/4 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 2
• Operating Frequency: 50/60 Hz
• Operating Temperature: 60 to 75 deg C
• Suitable for: Type ECB Unit Enclosures
• Type: Type BW
• Voltage Rating: 120/240 V
• Wire Size: 2/0 AWG
