Square D  |  Our Item #: MORG6721278

Model Number: HOMT2020CP - UPC : 047569071065

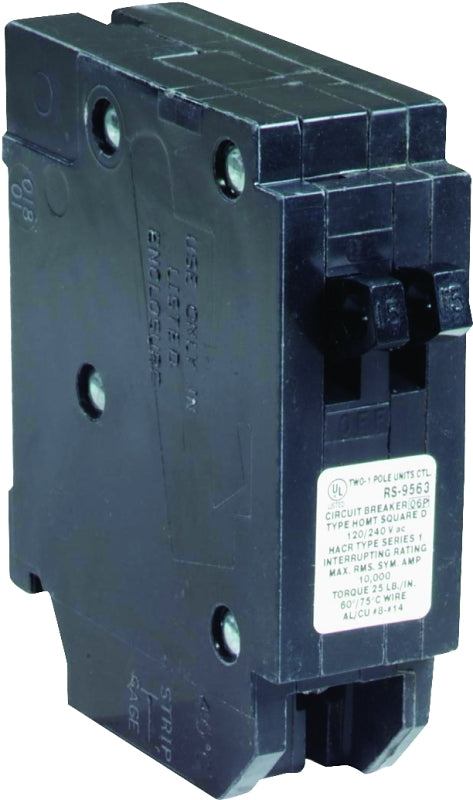

Square D Homeline HOMT2020CP Miniature Circuit Breaker, Tandem, 20 A, 1-Pole, 120/240 V, Fixed Trip, Plug Mounting

Get special pricing! Apply for a business account today.

Apply Now
$18.98 $21.89
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • HOM one-pole standard circuit breakers (15 to 50 A)
  • HOM two-pole standard circuit breakers (15 to 200 A)
  • HOM tandem breakers (one-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
  • HOM quad tandems circuit breakers (one- and two-pole, 15 to 50 A)
  • HOM ground-fault circuit-interrupters (one- and two-pole, 15 to 50 A)
  • Square D arc fault circuit-interrupters (1-pole, 15 A and 20 A)
  • Square D combination arc fault circuit-interrupters (1-pole, 15 A and 20 A)
  • Available accessories include handle attachments, filler plates and neutral lugs
  • HOM sub-feed lugs, two-pole, rated 125 A and 225 A

Description
Homeline miniature circuit breakers are engineered and designed for fast installation and great circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug-in circuit breaker provides an individual switching and tripping action. This tandem HOM plug-in miniature tandem breaker with plug-in mounting is rated 20 A and 20 A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. HOMT tandem breakers are UL Listed. This circuit breaker is commercial packaged.
Unit: EA
UPC: 047569071065
Model Number: HOMT2020CP

Additional Information

  • Color: Black
  • Current Rating: 20 A
  • Trip Sensitivity: 27 A
  • Trip Type: Fixed
  • Type: Tandem
  • Voltage Rating: 120/240 V
  • Wire Size: 14 to 8 AWG
  • Color: Black
  • Current Rating: 20 A
  • Dimensions: 3.13 in H x 1 in W x 2.98 in D
  • Interrupt Rating: 10 kA
  • Trip Sensitivity: 27 A
  • Number of Phases: 1
  • Number of Poles: 1
  • Number Of Spaces: 1
  • Operating Frequency: 50/60 Hz
