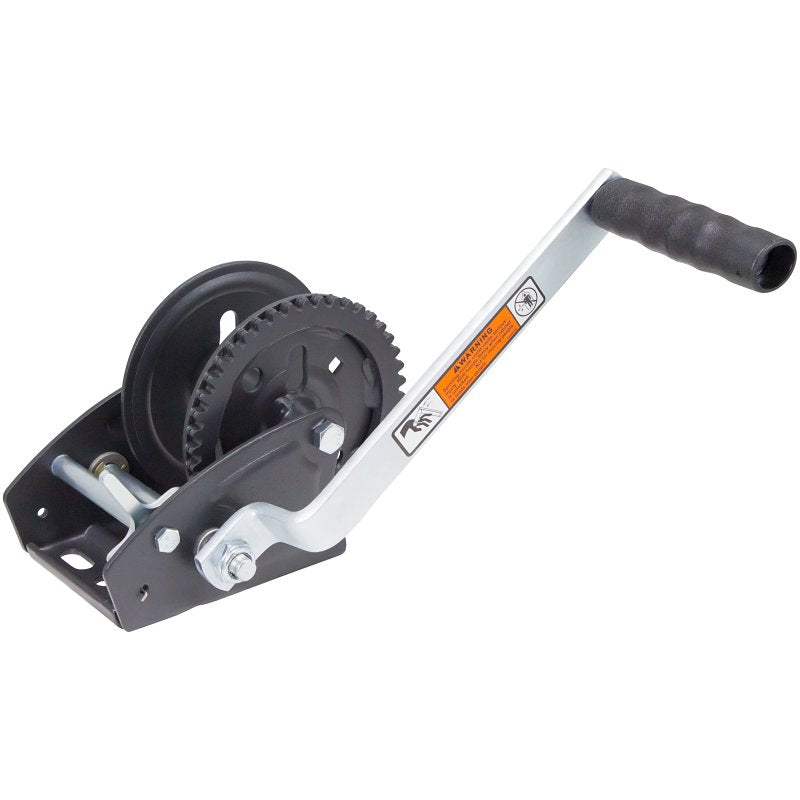

DL DL1402A Pulling Winch, 1400 lb Pull, 1/4 in Dia Wire Rope, 40 ft L Wire Rope, 4.40:1 Gear Ratio

Reinforced arc-welded reels, embossed, reinforced bases, high carbon steel gears throughout. Heavy steel handles have molded grips. All drive shafts have permanently lubricated bearings. Load matched gear ratios for easier cranking, hunting tooth gears system. Frees wheel when ratchet is disengaged. Base plates fit BIA Standard mounting hole pattern for easy installation. Equipped with holes in reel for easy installation of web strap. Powder-coated metallic copper bronze finish. Not for movement of human beings.
Unit: EA
UPC: 085077153019
Model Number: DL1402A

• Control Type: Handle
• Dimensions: 5-1/8 in L x 5-1/4 in W
• Gear Ratio: 4.401
• Gear Type: Spur
• Material: Steel
• Pull Capacity: 1400 lb
• Wire Rope Diameter: 1/4 in
• Wire Rope Length: 40 ft

Application: For horizontal pulling
