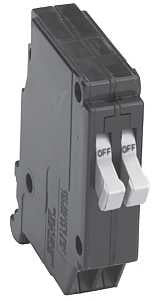

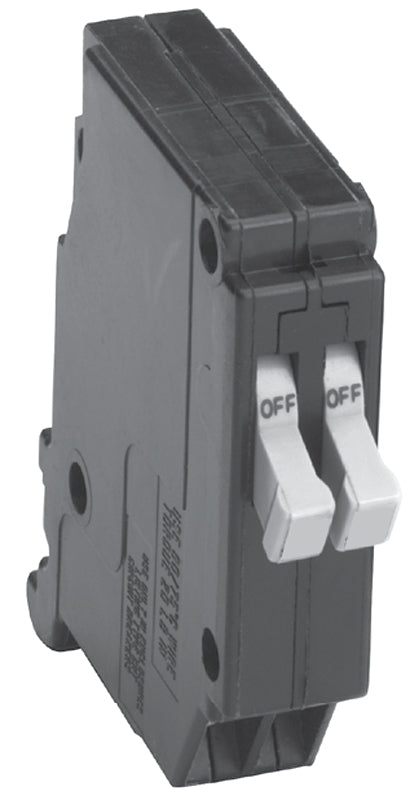

Cutler-Hammer CHT2020CS Circuit Breaker, Mini, Type CHT, 20 A, 1 -Pole, 120 V, Common, Fixed Trip, Plug Mounting

Single-pole, twin (CTL) 3/4 in (19.1 mm) per pole, requires one 3/4 in (19.1 mm) space. Wire size range Cu/Al 60 deg C or 75 deg C number 14-8. Class CTL 10 kAIC. Rejection feature. Use only with load centers marked for use with CHT breakers. HACR and switching duty rated. Rated for 120/240V.

Unit: EA

• Actuator Type: Magnetic Thermal
• Current Rating: 20 A
• Dimensions: 3-1/2 in L x 3/4 in W
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Number Of Spaces: 1
• Operating Frequency: 50/60 Hz
• Operating Temperature: 60 to 75 deg C
• Suitable for: load centers and Residential
• Trip Type: Common Fixed
• Type: Mini Type CHT
• Voltage Rating: 120 V
• Wire Size: 14 to 8 AWG

Application: For load centers and residential
