Raco  |  SKU: VORG6358741

Model Number: 8326 - UPC : 050169003268

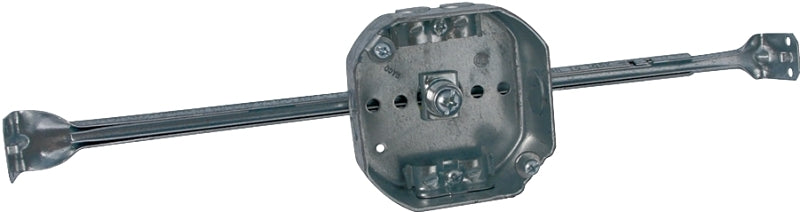

Raco 8326 Octagonal Box, 3-9/16 in OAW, 1-1/2 in OAD, 14-1/2 in OAH, 2-Gang, 6-Knockout, Steel Housing Material, Gray

$8.14 $10.99
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Fixture bar hanger allows box to be located anywhere along length of bar
  • Self-griping non-metallic sheathed cable entry clamps are integral part of the box
  • Self-contained metallic grounding strap
  • Raco offers a variety of labor saving mounting brackets that allow for easy positioning of box along studs or joists
  • Combination screw heads ensure quick installation
  • Drawn construction

Description
With non-metallic sheathed cable clamps. Two 1/2 in conduit knockouts and four cable knockouts (sides). Used to hang light fixtures between joists or structural members. Includes 4 in octagon box. Not designed for ceiling fan support. 10 lb maximum recommended support load. Furnished with 3/8 in - 18 NPS fixture stud. Bar hanger is adjustable from 14-1/4 to 22-1/2 in. Box is adjustable along entire length of bar. Acceptable for use in 2 hrs fire rated walls. UL listed. UPC bar code.

Unit: EA

Additional Information

  • Cable Entry: Clamp
  • Color: Gray
  • Cubic Capacity: 15-1/2 cu-in
  • Housing Material: Steel
  • Includes: 14-1/4 to 22-1/2 in Bar Hanger
  • Number Of Gangs: 2
  • Number Of Knockouts: 6
  • Overall Depth: 1-1/2 in
  • Overall Height: 14-1/2 in
  • Overall Width: 3-9/16 in


Application: For installation of ceiling or wall lighting fixtures

Raco

Raco 8326 Octagonal Box, 3-9/16 in OAW, 1-1/2 in OAD, 14-1/2 in OAH, 2-Gang, 6-Knockout, Steel Housing Material, Gray

$8.14 $10.99
With non-metallic sheathed cable clamps. Two 1/2 in conduit knockouts and four cable knockouts (sides). Used to hang light fixtures between joists or structural members. Includes 4 in octagon box. Not designed for ceiling fan support. 10 lb maximum recommended support load. Furnished with 3/8 in - 18 NPS fixture stud. Bar hanger is adjustable from 14-1/4 to 22-1/2 in. Box is adjustable along entire length of bar. Acceptable for use in 2 hrs fire rated walls. UL listed. UPC bar code.

Unit: EA
