Wayne  |  Our Item #: MORG6243224

Model Number: CDU790 - UPC : 040066100016

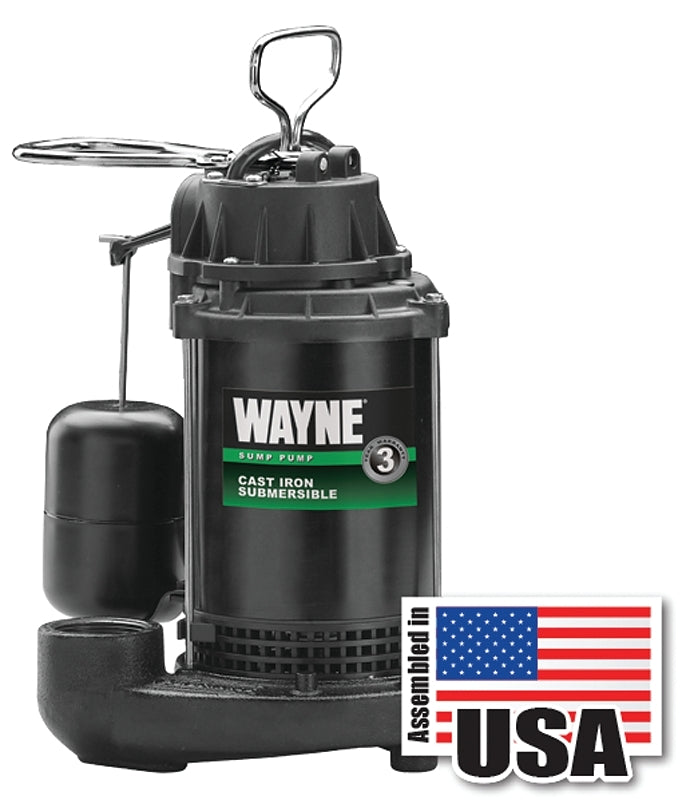

Wayne CDU790 Sump Pump, 1-Phase, 9.5 A, 120 V, 0.33 hp, 1-1/2 in Outlet, 20 ft Max Head, 1200 gph, Iron

$210.49 $242.15
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Submersible cast iron and coated steel sump pump with vertical float switch
  • 9 in On level and 4 in off level
  • Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit
  • Fully submersible
  • 1-1/2 in NPT discharge for standard plumbing installation
  • Durable construction materials
  • Maximum flow rate is 3800 gph and 2700 gph at 10 ft of discharge lift
  • Vertical float switch for automatic operation
  • Top suction Design filters debris and prevents clogging
  • Designed for easy installation without any plumbing changes

Description
1/3 hp cast iron and coated steel submersible sump pump. Assembled in the US with foreign and domestic parts. Float switch tested to 1 million cycles. Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit. Epoxy-coated steel motor housing and rugged, cast iron pump base. Fully submersible. 1/3 hp, max flow rate is 3800 gph at 0 ft 1-1/2 in. NPT discharge. For use in 11 in. diameter or larger sump basins, 9 in ON level and 4 in OFF level.

Unit: EA

MPN: CDU790

UPC: 040066100016

Additional Information

  • Cord Size: 8 ft
  • Current Rating: 9.5 A
  • Dimensions: 11-1/2 in H
  • Flow Rate: 1200 gph
  • Frequency Rating: 60 Hz
  • HP Rating: 0.33 hp
  • Material: Iron
  • Maximum Head: 20 ft
  • Number of Phases: 1
  • Outlet Connection Size: 1-1/2 in
  • Suitable for: 22 in H x 11 in Dia Basin Sumps
  • Temperature Rating: 40 to 120 deg F
  • Voltage Rating: 120 V
