Bussmann | Our Item #:
MORG6195283
Model Number: BP/MDL-1 - UPC : 051712813365

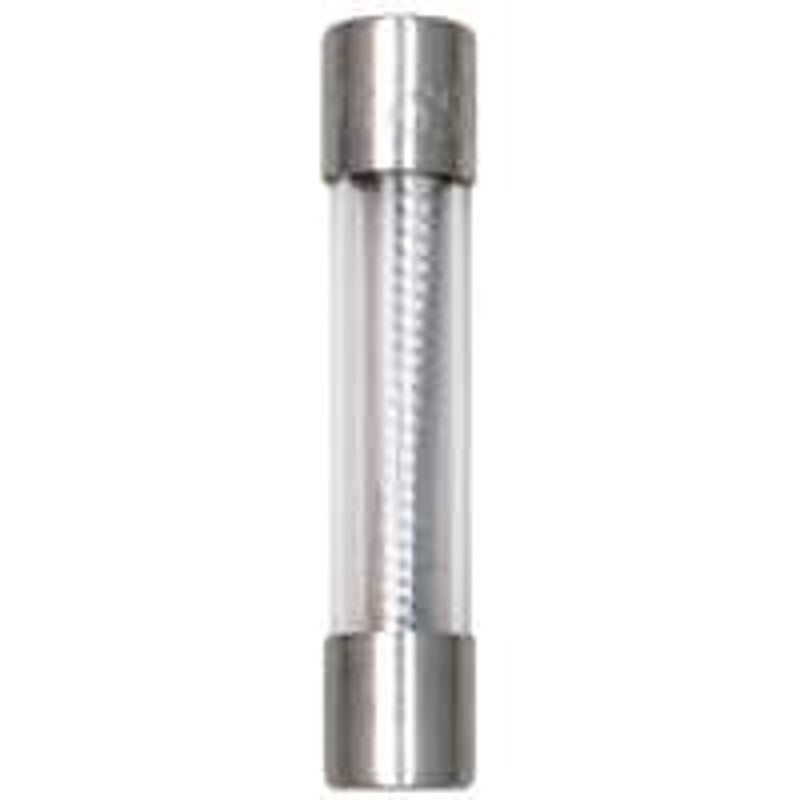

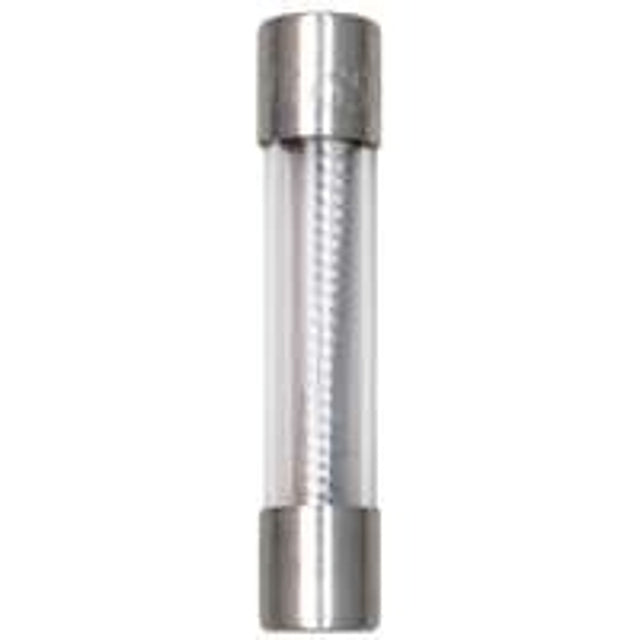

Bussmann BP/MDL-1 Fuse, 1 A, 250 V, 35 A, 10 kA Interrupt, Glass Body, G, Electronic Miniature, Time Delay Fuse
Sale price
$5.69
Regular price
$7.95
Unit price
Unavailable
Shipping calculated at checkout.
28% off
Bussmann BP/MDL-1 Fuse, 1 A, 250 V, 35 A, 10 kA Interrupt, Glass Body, G, Electronic Miniature, Time Delay Fuse is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Bussmann BP/MDL-1 Fuse, 1 A, 250 V, 35 A, 10 kA Interrupt, Glass Bo...
Sale price
$5.69
Regular price
$7.95
Unit price
Unavailable
Bussmann BP/MDL-1 Fuse, 1 A, 250 V, 35 A, 10 kA Interrupt, Glass Body, G, Electronic Miniature, Time Delay Fuse is backordered and will ship as soon as it is back in stock.
Features
Description
Description
Glass tube. Plated brass end caps. 1/4 in x 1-1/4 in. 250 VAC rating maximum. UL listed.
Unit: CD 2
UPC: 051712813365
Model Number: BP/MDL-1
Unit: CD 2
UPC: 051712813365
Model Number: BP/MDL-1
Additional Information
Additional Information
- Body Material: Glass
- Contact Material: Brass
- Current Rating: 1 A
- Diameter: 1/4 in
- Element Type: Single
- Fuse Group: G
- Fuse Type: Electronic Miniature Time Delay
- Interrupt Rating: 35 A 10 kA
- Length: 1-1/4 in
- Rejection/Non-Rejection: Non-Rejection
- Resistance: 0.273 Ohm
- Terminal Type: Ferrule
- Voltage Rating: 250 V
Application: For electronic circuits
