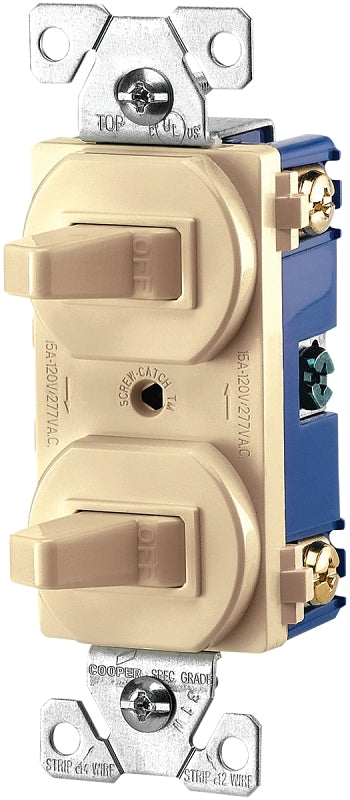

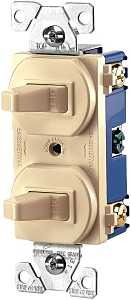

Bussmann 271V-BOX Toggle Switch, 15 A, 120/277 V, SPDT, Lead Wire Terminal, Thermoplastic Housing Material, Ivory

Grounding terminal screw standard. Combination switch with additional switch has 120/277 V rating, ideal for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Break-off provision for wiring both devices on same circuit or on separate circuits. Terminal screws backed out and ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Combination slot/Phillips head mounting and terminal screws. Switches meet all UL 20 requirements. UL listed.
Unit: EA
UPC: 032664750304
Model Number: 271V-BOX

• Actuator Type: Toggle
• Color: Ivory
• Contact Configuration: SPDT
• Contact Material: Brass
• Current Rating: 15 A
• Housing Material: Thermoplastic
• Mounting Type: Flush
• Number of Poles: 1
• Switch Operation: Back and Side
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Lead Wire
• Voltage Rating: 120/277 V
