Abb  |  Our Item #: MORG6122113

Model Number: THQL2160 - UPC : 783164700473

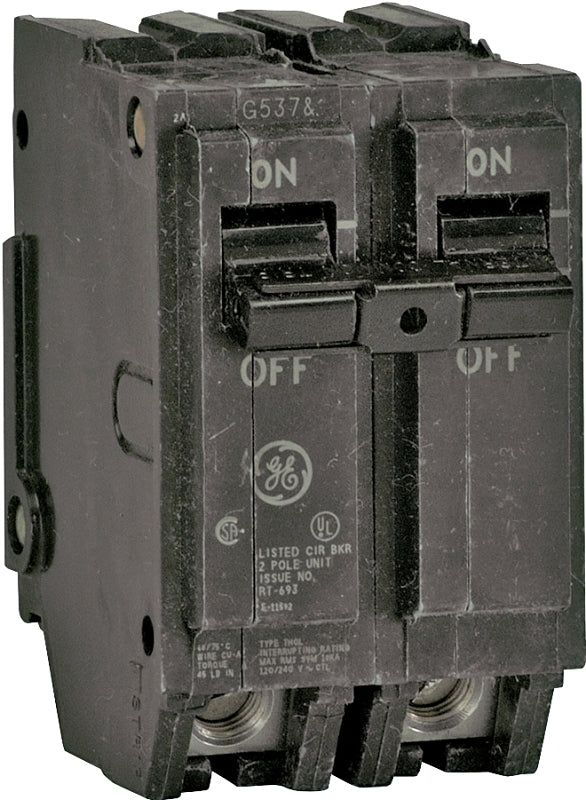

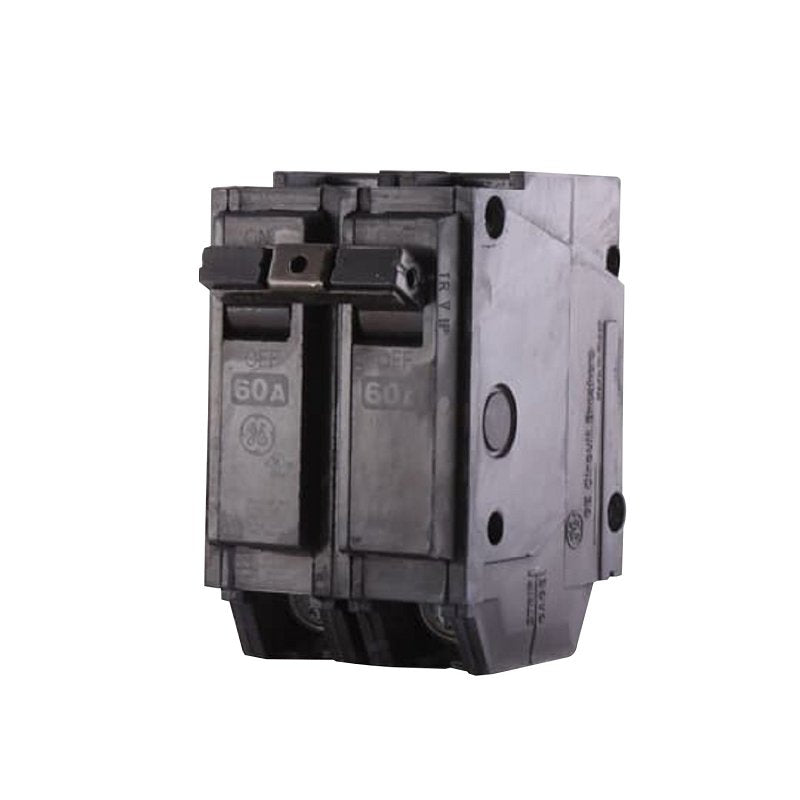

ABB THQL2160 Feeder Circuit Breaker, Type THQL, 60 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug

Get special pricing! Apply for a business account today.

Apply Now
$18.59 $21.45
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
  • Calibration screw is cemented to prevent shifting
  • Case is made of heat-resistant thermoset for stability and structural integrity
  • Trips to the center position

Description
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 cu or 12-8 al AWG wire, 35 to 60 A 8-3 cu or 8-2 al AWG wire, 70 to 100 A 6-1/0 cu or 4-1/0 al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
Unit: EA
UPC: 783164700473
Model Number: THQL2160A

Additional Information

  • Current Rating: 60 A
  • Dimensions: 3.28 in L x 2 in W x 2.38 in H
  • Frame Type: Q-Line
  • Interrupt Rating: 10 kA
  • Wire Size: 8 to 3 8 to 2 AWG
  • Current Rating: 60 A
  • Number of Poles: 2
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 60 to 75 deg C
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 2
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 60 to 75 deg C
  • Suitable for: Reverse Feed
  • Terminal Type: Lug
