Ge  |  Our Item #: MORG6122006

Model Number: THQL1140 - UPC : 783164012880

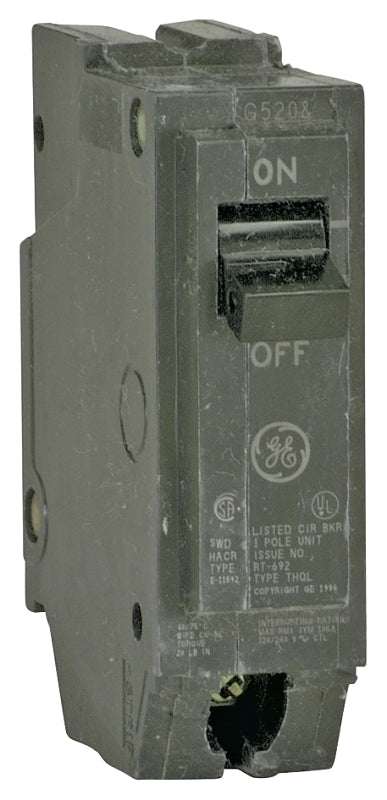

GE THQL1140 Feeder Circuit Breaker, Type THQL, 40 A, 1-Pole, 120/240 V, Non-Interchangeable Trip, Plug

$8.09 $9.39
Shipping calculated at checkout.
14% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
  • Calibration screw is cemented to prevent shifting
  • Breaker case is made of heat-resistant thermoset for stability and structural integrity
  • Trips to the center position

Description
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Type THQL 1 in per pole. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger and Crouse-Hinds. 15 to 30 A 14 to 8 Cu or 12 to 8 Al AWG wire, 35 to 60 A 8 to 3 Cu or 8 to 2 Al AWG wire. UL listed, HACR rated. 1 in module, 120/240 V, 10,000 AIR.

Additional Information

  • Actuator Type: Quick-Make Quick-Break
  • Current Rating: 40 A
  • Dimensions: 3.28 in L x 1 in W x 2.38 in H
  • Frame Type: Q-Line
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 1
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 60 to 75 deg C
  • Suitable for: Reverse Feed
  • Terminal Type: Lug
  • Trip Sensitivity: 400 A
  • Trip Type: Non-Interchangeable
  • Type: Type THQL
  • Voltage Rating: 120/240 V
  • Wire Size: 8 to 3 8 to 2 AWG
