Kwikset | Our Item #:
MORG6113245
Model Number: 720LL3CP - UPC : 883351469012

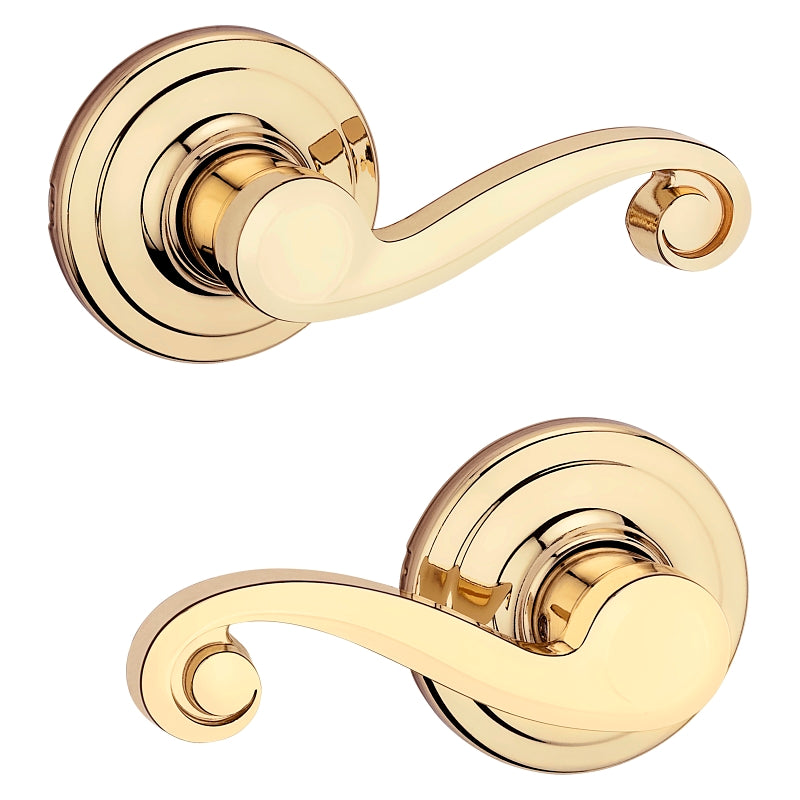

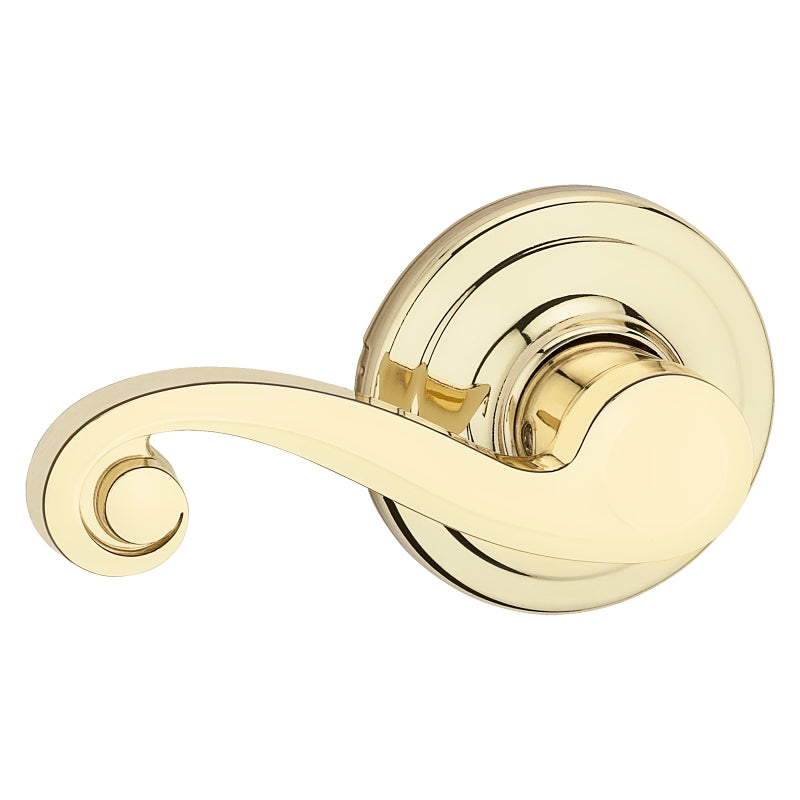

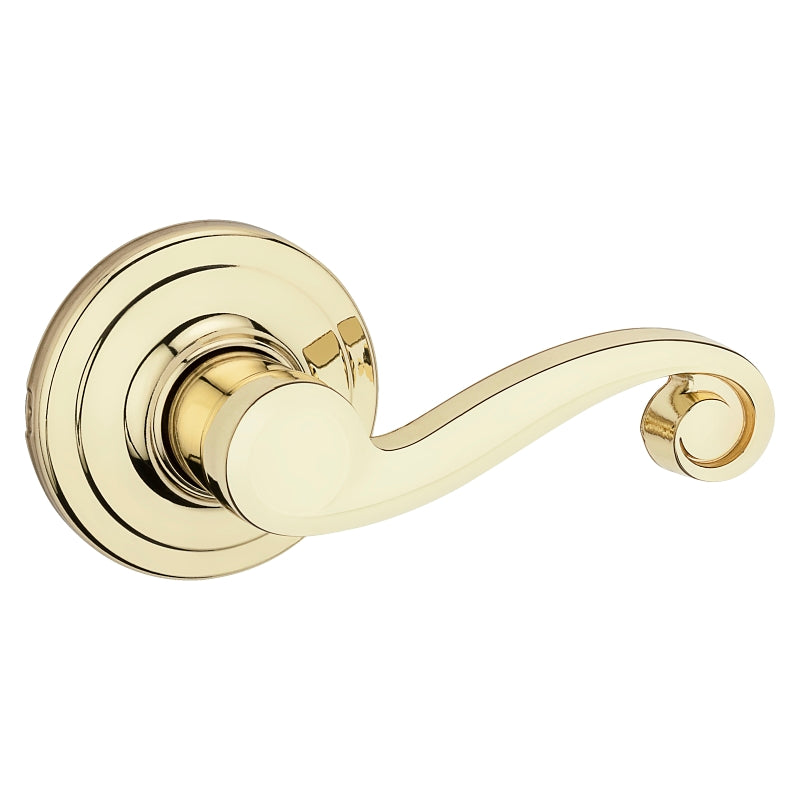

LIDO PASSAGE LVR BRIGHT BRASS
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$23.65
Regular price
$29.39
Unit price
Unavailable
Shipping calculated at checkout.
Sold out
20% off
Notify me when back in stock
LIDO PASSAGE LVR BRIGHT BRASS is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Features
Description
Description
For hall and closets. Both levers always free; no locking mechanism. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" standard, 2-3/4" optional. DOOR THICKNESS: 1-3/8" to 1-3/4". FACEPLATE: 1" x 2-1/4". STRIKE: 2-1/4" full lip. BOLT: 1/2" throw. ANSI/BHMA: Grade 3. ADA: Satisfies section 4.13.9 ADA requirements.
Additional Information
Additional Information
- Backset Size: 2-3/8 x 2-3/4 in
- Bolt Throw Size: 1/2 in
- Cross Bore Diameter: 2-1/8 in
- Dimensions: 2-5/8 in Dia x 1-29/32 in H
- Door Thickness: 1-3/8 to 1-3/4 in
- Edge Bore Diameter: 1 in
- Faceplate Size: 1 x 2-1/4 in
- Finish: Polished Brass
- Key Type: Not Keyed
- Projection Size: 3-3/4 in
- Security Grade: 2
- Strike Size: 2-1/4 in
- Strike Type: Round Corner
- Suitable for: Doors
