Cutler-Hammer  |  Our Item #: MORG6066476

Model Number: CH2100 - UPC : 782113102375

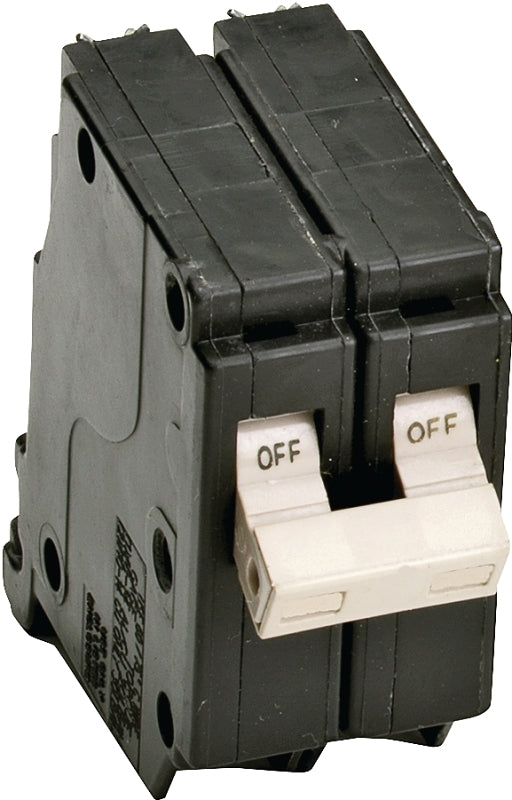

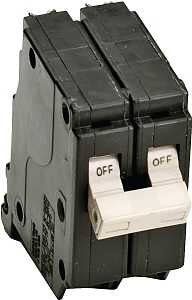

Cutler-Hammer CH2100 Circuit Breaker, Type CH, 100 A, 2 -Pole, 120/240 V, Common Trip, Plug Mounting

$100.93 $126.65
Shipping calculated at checkout.
20% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Tri Drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
  • Space saving 3/4 in design accommodates more breakers per panel

Description
Eaton has enhanced its premium Type CH residential circuit breakers, making the ideal even better. The Type CHF AFCI breakers also include advanced electronics that reduce nuisance tripping and a standard diagnostic LED indicating one of seven trip codes. These features further establish the CH series of products as the ultimate.
Unit: EA
UPC: 782113102375
Model Number: CH2100

Additional Information

  • Actuator Type: Magnetic Thermal
  • Current Rating: 100 A
  • Dimensions: 3 in L x 3/4 in W x 4 in H
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 2
  • Number Of Spaces: 2
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 60 to 75 deg C
  • Suitable for: Type CH Load Centers
  • Trip Type: Common
  • Type: Type CH
  • Voltage Rating: 120/240 V
  • Wire Size: 10 to 1/0 AWG
