Cutler-Hammer | SKU:
VORG6066377
Model Number: CHF130 - UPC : 786685361864

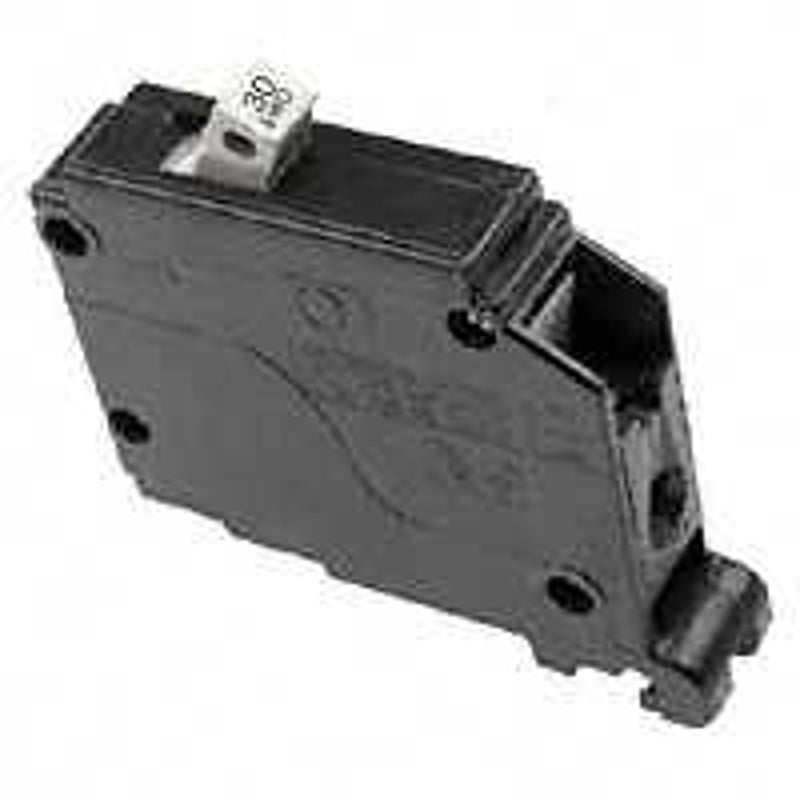

CIRC BRKR 1P 3/4IN 30A TYPE CH
$13.00
$15.29
Unit price
/
Unavailable
Shipping calculated at checkout.
15% off
CIRC BRKR 1P 3/4IN 30A TYPE CH is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Features
Description
Description
Quick make, quick break switch, inverse time element tripping operation and trip free handle. Thermal-magnetic trip curve. UL Listed, HACR rated, meets NEMA standards and Federal Specifications, CSA certified. 120/240 volt AC. 10,000 AIR. 3/4" per pole.
Unit: EA
Unit: EA
Additional Information
Additional Information
- Actuator Type: Magnetic Thermal
- Current Rating: 30 A
- Dimensions: 3-1/2 in L x 1-1/2 in W x 3-1/2 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug-In
- Number of Phases: 1
- Number of Poles: 1
- Number Of Spaces: 1
- Operating Frequency: 50/60 Hz
- Operating Temperature: 60 to 75 deg C
- Suitable for: Type CH Load Centers
- Trip Type: Instantaneous
- Type: Miniature Type CH
- Voltage Rating: 120/240 V
- Wire Size: 14 to 10 14 to 8 AWG
