Grk Fasteners  |  Our Item #: MORG5378054

Model Number: 96001 - UPC : 092097960015

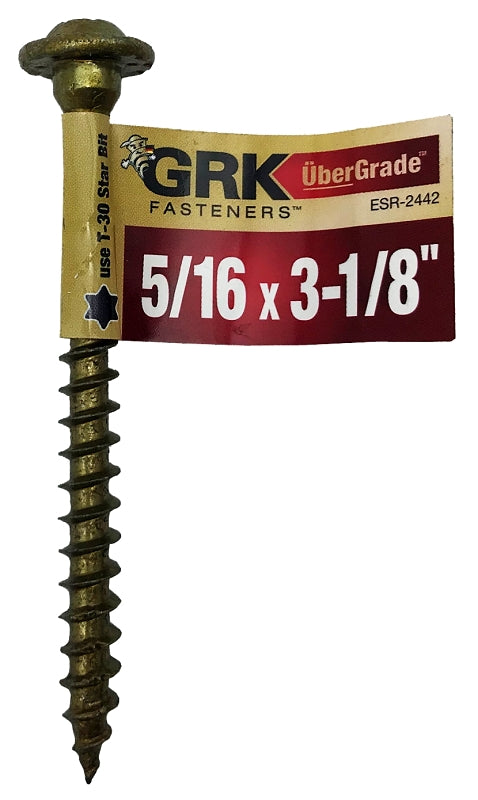

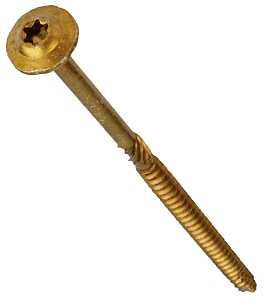

GRK Fasteners RSS 96001 Structural Screw, 5/16 in Thread, 3-1/8 in L, Washer Head, Star Drive, Steel, 1 PK, Pack of 50

$62.16 $79.50
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Recessed star drive zero stripping, with six points of contact
  • CEE Threadâ„¢ enlarges hole to reduce splitting
  • W-Cutâ„¢ low torque, faster drive
  • Zip-Tipâ„¢ no pre-drilling, faster penetration
  • Washer head for immense holding power
  • Cutting pockets provide a clean hole and reduces splitting and bore with precision
  • Case hardened steel for high tensile, torque and shear strength
  • Climatekâ„¢ coating is AC257 code approved for use in treated lumber

Description
GRK's RSSâ„¢ screw is made of specially hardened steel to provide you with high tensile, torque and shear strength. The sharp threads and points bite instantly into the material (including hardwood), reducing the splitting effect due to smaller shanks. RSSâ„¢ screws that are 3-1/8 in and longer have CEE threads which enlarge the screw hole for the non-threaded portion of the fastener, allowing the wood to settle easily and increases the screw's drawing strength. The CEE thread also reduces the friction on the screw shank which can result in lowering the driving torque and the likelihood of splitting the wood. This is why the RSSâ„¢ screw is an efficient lag screw alternative. Our round head with built-in shield (washer type head) has no sharp edges like conventional lag screws. The added shoulder (nominal diameter) underneath the washer has the ability to center the RSSâ„¢ screw in pre-drilled hardware like hinges and connector plates.

Additional Information

  • Applicable Materials: Wood
  • Drive Type: Star
  • Head Type: Washer
  • Length: 3-1/8
  • Material: Steel
  • Package Quantity: 1 PK
  • Shear Strength: 2948 lb
  • Tensile Strength: 4247 lb
  • Thread Length: 2.087 in
  • Thread Size: 5/16 in

Grk Fasteners

GRK Fasteners RSS 96001 Structural Screw, 5/16 in Thread, 3-1/8 in L, Washer Head, Star Drive, Steel, 1 PK, Pack of 50

$62.16 $79.50
GRK's RSSâ„¢ screw is made of specially hardened steel to provide you with high tensile, torque and shear strength. The sharp threads and points bite instantly into the material (including hardwood), reducing the splitting effect due to smaller shanks. RSSâ„¢ screws that are 3-1/8 in and longer have CEE threads which enlarge the screw hole for the non-threaded portion of the fastener, allowing the wood to settle easily and increases the screw's drawing strength. The CEE thread also reduces the friction on the screw shank which can result in lowering the driving torque and the likelihood of splitting the wood. This is why the RSSâ„¢ screw is an efficient lag screw alternative. Our round head with built-in shield (washer type head) has no sharp edges like conventional lag screws. The added shoulder (nominal diameter) underneath the washer has the ability to center the RSSâ„¢ screw in pre-drilled hardware like hinges and connector plates.
