Tie Down Engineering  |  SKU: VORG5166079

Model Number: 59125L - UPC : 081628591255

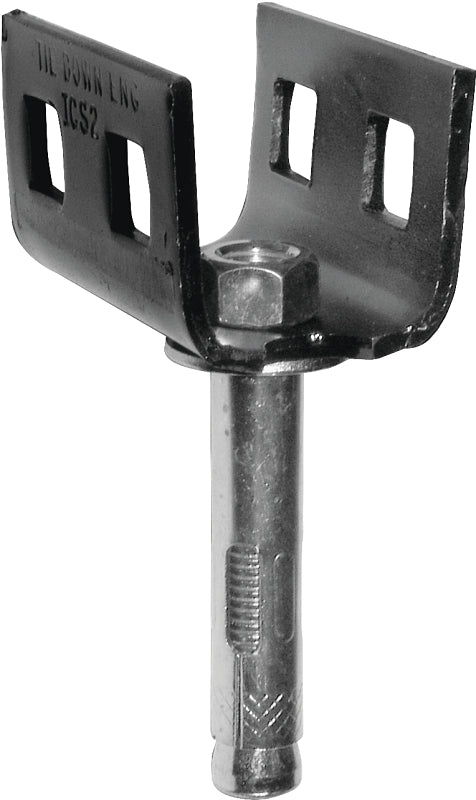

Tie Down MICS2 59125L Anchor with Expansion Bolt, Painted, Pack of 24

$203.57 $268.56
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

    Description
    Designed to be bolted to an expansion sleeve in an existing concrete slab or footing with only a 5/8 in drilled hole for expansion anchor bolt. Concrete must be 2500 psi minimum slab with 4 in minimum thickness and 6/6 x 10/10 wire mesh or fiber mesh installed. Concrete slab must allow 4725 lb of vertical tension on anchor without lifting. This assumes that the concrete weighs 150 lb/cu-ft. Minimum distance from the anchor shaft to one edge of the slab is 4 in from one edge and 6 in from any other edge. Black color.

    Unit: EA

    Additional Information

    • Color: Black
    • Dimensions: 3 in L x 5/8 in W
    • Finish: Painted
    • Type: Double Head
    • Weight Capacity: 150 lb/cu-ft

    Tie Down Engineering

    Tie Down MICS2 59125L Anchor with Expansion Bolt, Painted, Pack of 24

    $203.57 $268.56
    Designed to be bolted to an expansion sleeve in an existing concrete slab or footing with only a 5/8 in drilled hole for expansion anchor bolt. Concrete must be 2500 psi minimum slab with 4 in minimum thickness and 6/6 x 10/10 wire mesh or fiber mesh installed. Concrete slab must allow 4725 lb of vertical tension on anchor without lifting. This assumes that the concrete weighs 150 lb/cu-ft. Minimum distance from the anchor shaft to one edge of the slab is 4 in from one edge and 6 in from any other edge. Black color.

    Unit: EA
