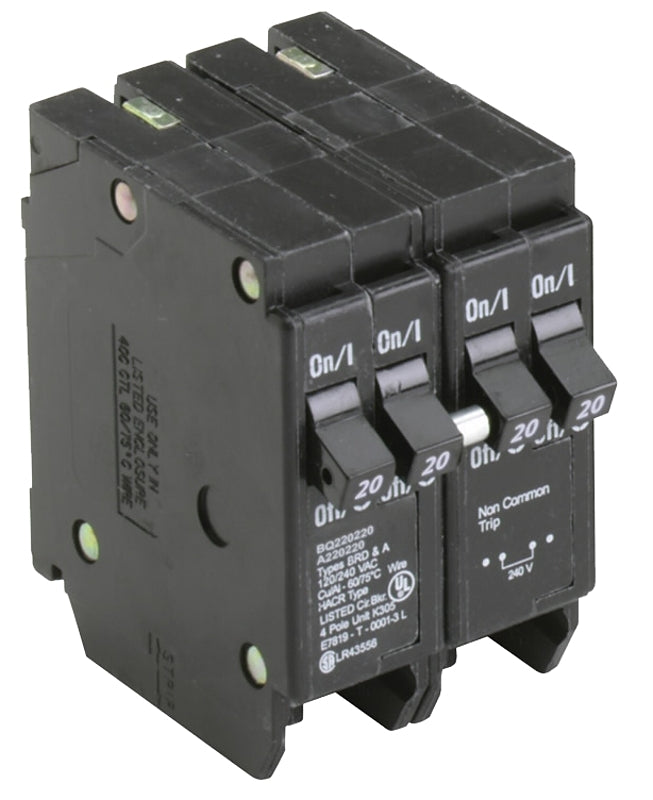

Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Quad, Type BQ, 20 A, 4 -Pole, 120/240 V, Plug Mounting

CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.

Unit: EA

• Actuator Type: Magnetic Thermal
• Current Rating: 20 A
• Dimensions: 3.1 in L x 1.97 in W x 2.89 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 4
• Operating Frequency: 50/60 Hz
• Operating Temperature: 60 to 75 deg C
• Terminal Type: Feed-Thru
• Type: Quad Type BQ
• Voltage Rating: 120/240 V
• Wire Size: 14 to 4 AWG
