Eaton Wiring Devices  |  Our Item #: MORG4896361

Model Number: TRUSBAC15W-KB-L - UPC : 032664016639

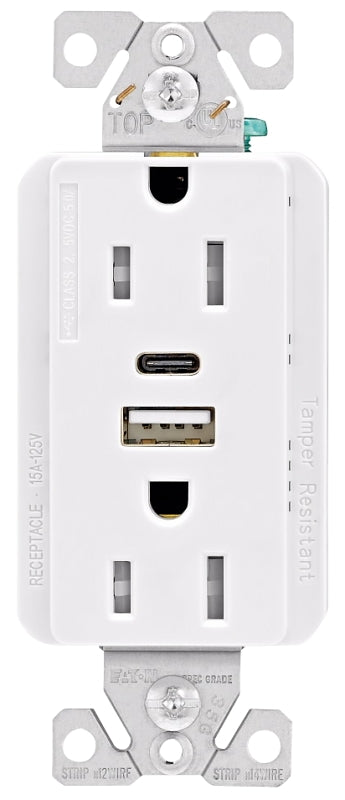

Eaton Cooper Wiring TRUSBAC15W-BX-L Combination Duplex Receptacle, 2 -Pole, 15 A, 125 V, 2 -USB Port, Type A, C USB

Get special pricing! Apply for a business account today.

Apply Now
$20.55 $23.69
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Standard AC receptacle with USB and USB-C ports rated at a combined 5 A
  • USB-C charging port charges most electronic devices that comply with the USB-C standard
  • Tamper-resistant shutters provide compliance with 2017 NECÂ Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
  • Replaces a standard duplex receptacle
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
  • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire strippers speed installation
  • Triple wipe blade contacts and double-wipe ground contacts to insure long term blade retention
  • Reversible Type C port allows for consistent charging regardless of plug-in orientation

Description
Eaton Cooper Wiring Combination Duplex Receptacle, Tamper-Resistant, 125 V, 15 A, Frequency Rating: 130 kHz, Wattage Rating: 25 W, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, USB Type: Type A, C, Wiring Type: Back, Side, Wire Size: 14 to 10 AWG, NEMA Configuration: 5-15R, Operating Temperature: -4 to 140 deg F, Flush Mounting, Thermoplastic/Steel, White, Dimensions: 4.19 in H x 1.3 in W x 1.67 in D
Unit: EA
UPC: 032664016639
Model Number: TRUSBAC15W-BX-L

Additional Information

  • Color: White
  • Current Rating: 15 A
  • Dimensions: 4.19 in H x 1.3 in W x 1.67 in D
  • Frequency Rating: 130 kHz
  • Material: Thermoplastic/Steel
  • Mounting Type: Flush
  • NEMA Configuration: 5-15R
  • Number of Poles: 2
  • Number of USB Ports: 2
  • Number Of Wires: 3
  • Operating Temperature: -4 to 140 deg F
  • Type: Tamper-Resistant
  • USB Type: Type A C
  • Voltage Rating: 125 V
  • Wattage Rating: 25 W
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Back Side
