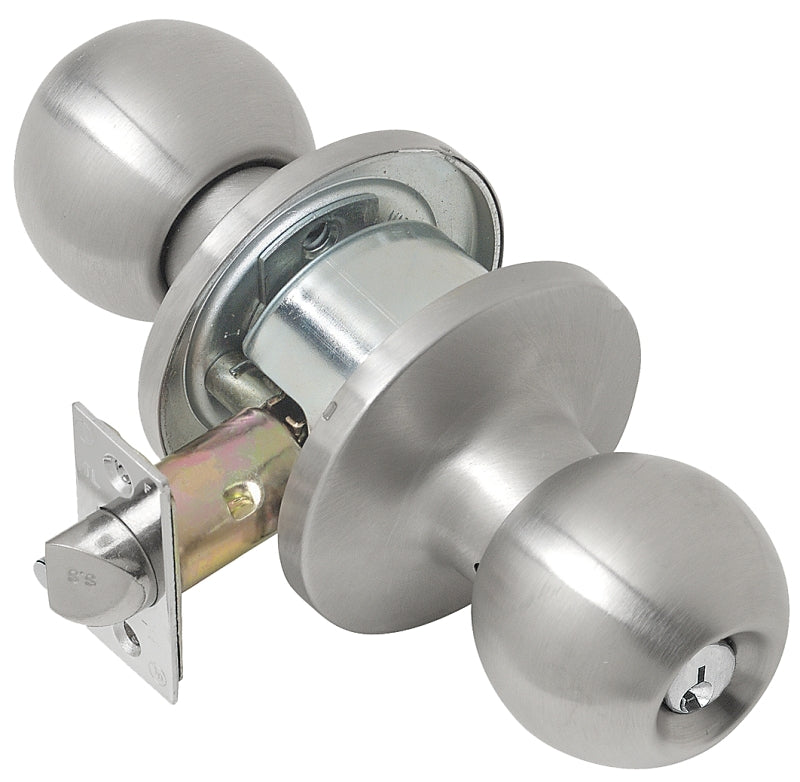

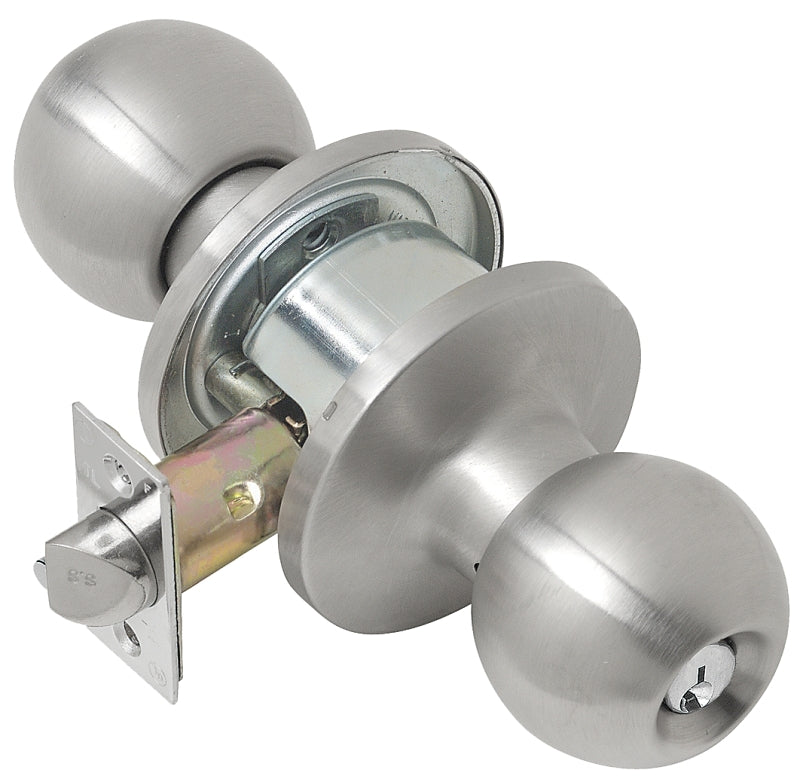

Tell Manufacturing CL100053 Entry Knob, Stainless Steel, Steel, C Keyway, 2 Grade

Commercial, Tubular Grade 2, entry knob, US32D Satin Stainless Steel finish, complies with ANSI A156.2, 400, 00 cycles, non-handed, for use on interior or exterior wood or metal doors, 1-3/8 to 1-3/4 in thick, latch 1 in x 2-1/4 in, square corner, 3/4 in housing diameter, 1/2 in Throw, backset adjustable for 2-3/8 to 2-3/4 in strike, 1-1/8 in x 2-3/4 in x 3/32 in T Strike, use 2-1/8 in Dia hole for knob and 1 in Dia hole for latch bolt, fits standard 161 Door Prep, Schlage C Keyway, UL listed for 3 hrs fire door, includes 2 nickel silver keys.

Unit: EA

MPN: CL100053

UPC: 737874298102

• Backset Size: 2-3/8 x 2-3/4 in
• Bolt Throw Size: 1/2 in
• Door Thickness: 1-3/8 to 1-3/4 in
• Faceplate Size: 1-1/8 x 2-1/4 in
• Finish: Satin Stainless
• Includes: (2) Keys
• Key Type: Keyed
• Keyway Type: C
• Length: 18.5 in
• Material: Steel
• Security Grade: 2
• Strike Size: 1-1/8 x 2-3/4 in
• Strike Type: T-Style
• Suitable for: 1-3/8 to 1-3/4 in Thick Doors
• Type: Tubular

Application: For use on interior or exterior wood or metal doors

Warranty: Limited Lifetime
