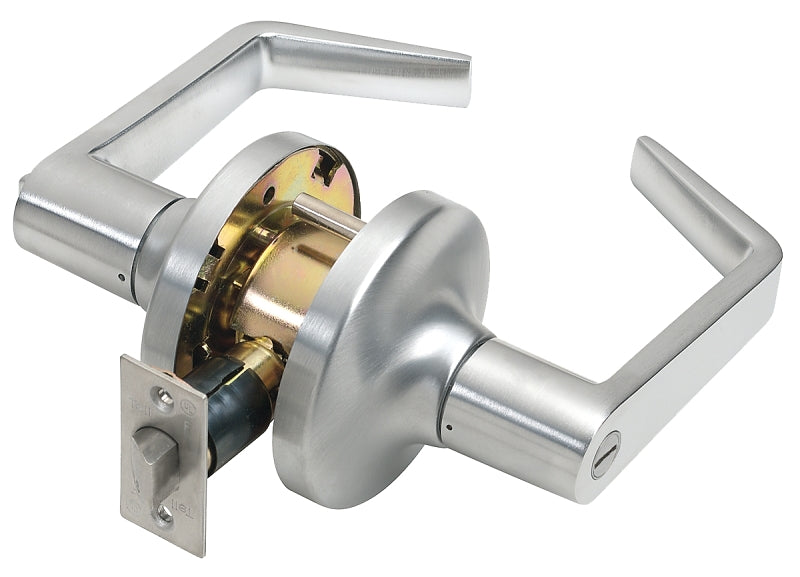

Tell Manufacturing CL100016 Privacy Lever, Pushbutton Lock, Satin Chrome, Steel, Reversible Hand, 2 Grade

Complies with ANSI A156.2, Grade 2 (400,000 cycles), UL listed for 3 hr fire door, ANSI A117.1 American Disabilities Act (ADA). Door range of 1-3/8 to 2 in. Backset of 2-3/4 in standard. Strike, T-strike (1-1/8 in x 2-3/4 in) standard. Cylindrical, steel-coated with zinc dichromate (corrosion resistance). Latch bolt operated by lever from either side, outside lever locked by pushbutton on inside, unlocked by emergency release on outside, rotating inside lever or closing door.
Unit: EA
UPC: 737874400659
Model Number: CL100016

• Backset Size: 2-3/4 in
• Cross Bore Diameter: 2-1/8 in
• Door Handing: Reversible
• Door Thickness: 1-3/8 to 2 in
• Edge Bore Diameter: 1 in
• Finish: Satin Chrome
• Lock Type: Pushbutton
• Material: Steel
• Mounting Type: Non-Handed
• Security Grade: 2
• Strike Size: 1-1/8 x 2-3/4 in
• Strike Type: T-Style
• Type: Heavy-Duty

Application: For commercial applications
