Dewalt  |  Our Item #: MORG4593380

Model Number: 7433SD1-PWR - UPC : 075352776217

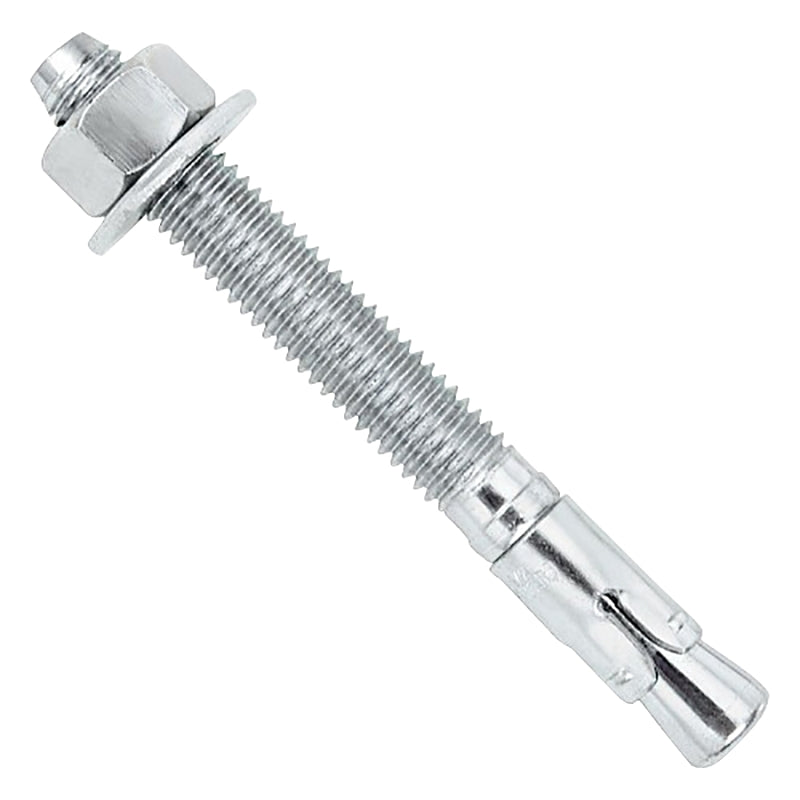

DEWALT Power-Stud 7433SD1 Wedge Anchor, 5/8 in Dia, 5 in OAL, Carbon Steel, Zinc

Get special pricing! Apply for a business account today.

Apply Now
$44.77 $56.19
Shipping calculated at checkout.
20% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Consistent performance in high and low strength concrete
  • Anchor can be installed through standard fixture holes
  • Anchor design allows for follow-up expansion after setting under tensile loading
  • Nominal drill bit size is the same as the anchor diameter
  • Length ID code and identifying marking stamped on head of each anchor

Description
The Power-Stud Plus SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc-plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
Unit: BX25
UPC: 075352776217
Model Number: 7433SD1-PWR

Additional Information

  • Diameter: 5/8 in
  • Finish: Zinc
  • Includes: (25) Wedge Anchors
  • Material: Carbon Steel
  • Maximum Work Thickness: 1-5/8 in
  • Minimum Embedment Depth: 2-3/4 in
  • Overall Length: 5 in
  • Shear Strength: 6815 lb
  • Tensile Strength: 6285 lb
  • Thread Length: 3 in
  • Thread Size: 5/8-11
  • Thread Type: UNC
