Dewalt  |  SKU: VORG4593059

Model Number: PFM1411420 - UPC : 075352305042

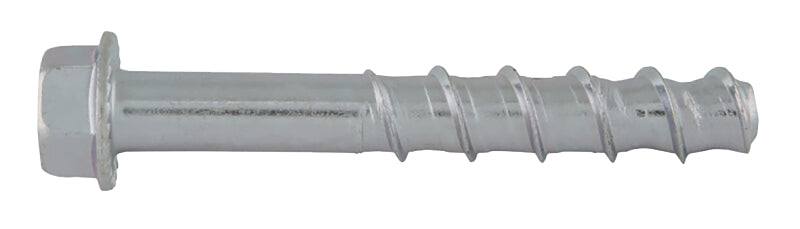

DEWALT Screw-Bolt+ PFM1411420 Screw Anchor, 1/2 in Dia, 4 in L, Carbon Steel, Zinc

$88.96 $110.59
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Tough threads for tapping high strength concrete
  • Can be installed closer to the edge than traditional expansion anchors
  • Fast installation with powered impact wrench
  • One-piece, finished head design
  • Ratchet teeth on underside of hex washer head lock against the fixture
  • Fully removable and re-installable in same hole
  • Designed for standard ANSI tolerance drill bits

Description
The Screw-Bolt+ anchor is a one-piece, heavy-duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+ finish is available in bright zinc-plated and mechanically galvanized. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.

Unit: BX50

Additional Information

  • Diameter: 1/2 in
  • Drill Size: 1/2 in
  • Finish: Zinc
  • Head Type: Hex Washer
  • Length: 4
  • Material: Carbon Steel
  • Minimum Clearance: 5/8 in
  • Minimum Concrete Thickness: 3 in
  • Minimum Embedment Depth: 1-3/4 in


Application: For fencing/railing, glazing/window attachments, racking/shelving/material handling, repairs and maintenance, retrofits, seismic/wind, support ledgers/sill plate attachments, temporary attachments
