Dewalt  |  SKU: VORG4592903

Model Number: 05530-PWR - UPC : 075352055305

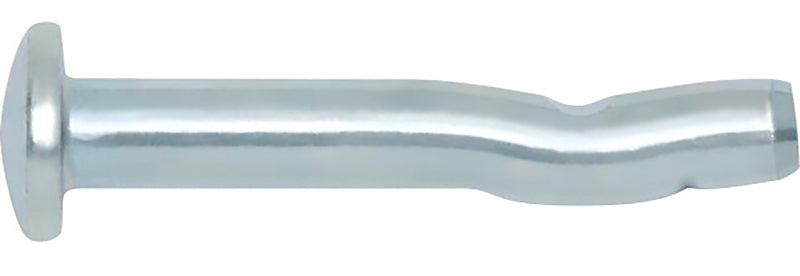

DEWALT Spike 5530 Pin Anchor, 1/4 in Dia, 3 in L, Carbon Steel, Zinc, 100/BX

$35.28 $44.59
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Pre-expanded anchor design allows for easy installation
  • Forming Spike, which is removable, can be used for temporary installations
  • Mushroom and flat head Spike anchors are tamper-proof
  • Pipe and tie-wire Spike is a simple to install alternative to direct fastening

Description
The Spike is a one-piece, vibration-resistant anchor for use in concrete block or stone. The Spike anchor is formed with an "s" shaped configuration at the working end of the anchor to create an expansion mechanism. Since the anchor is pre-formed, there is no secondary tightening operation required which greatly reduces the overall cost of an anchor installation.

Unit: BX100

Additional Information

  • Diameter: 1/4 in
  • Drill Size: 1/4 in
  • Finish: Zinc
  • Head Type: Mushroom
  • Length: 3
  • Material: Carbon Steel
  • Minimum Clearance: 5/16 in
  • Minimum Embedment Depth: 1-1/4 in


Application: For concrete formwork, cable trays/strut, metal track attachments, pipe hanging

Dewalt

DEWALT Spike 5530 Pin Anchor, 1/4 in Dia, 3 in L, Carbon Steel, Zinc, 100/BX

$35.28 $44.59
The Spike is a one-piece, vibration-resistant anchor for use in concrete block or stone. The Spike anchor is formed with an "s" shaped configuration at the working end of the anchor to create an expansion mechanism. Since the anchor is pre-formed, there is no secondary tightening operation required which greatly reduces the overall cost of an anchor installation.

Unit: BX100
