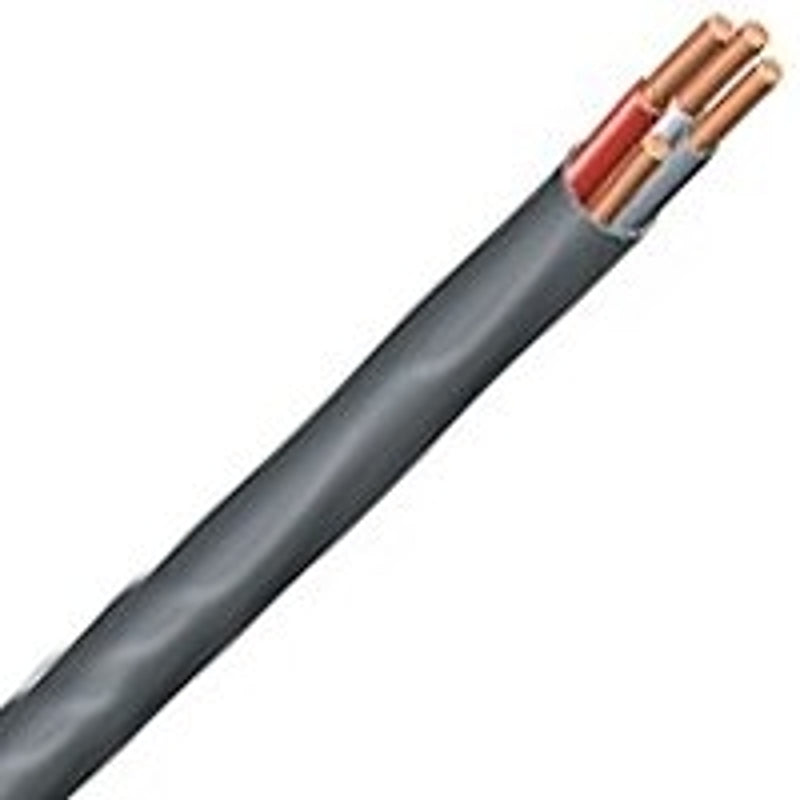

Romex 8/3NM-WGX125 Sheathed Cable, 8 AWG Wire, 3-Conductor, 125 ft L, Copper Conductor, PVC Insulation, Nylon Sheath

Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the national Electric Code Article 336. Dwellings not exceeding three floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.
Unit: L FT
UPC: 032886263651
Model Number: 8/3NM-WGX125

• Bend Radius: 2.3 in
• Conductor Insulation: PVC
• Conductor Material: Copper
• Current Rating: 40 A
• Length: 125
• Number of Conductors: 3
• Operating Temperature: 90 deg C
• Resistance: 0.653 Ohm
• Sheath Color: Black
• Sheath Diameter: 0.585 in
• Sheath Material: Nylon
• Stranded/Solid: Stranded
• Strands per Conductor: 7
• Type: NM-B
• Voltage Rating: 600 V
• Wire Size: 8 AWG
