Bussmann  |  Our Item #: MORG4184057

Model Number: NON-100 - UPC : 051712101684

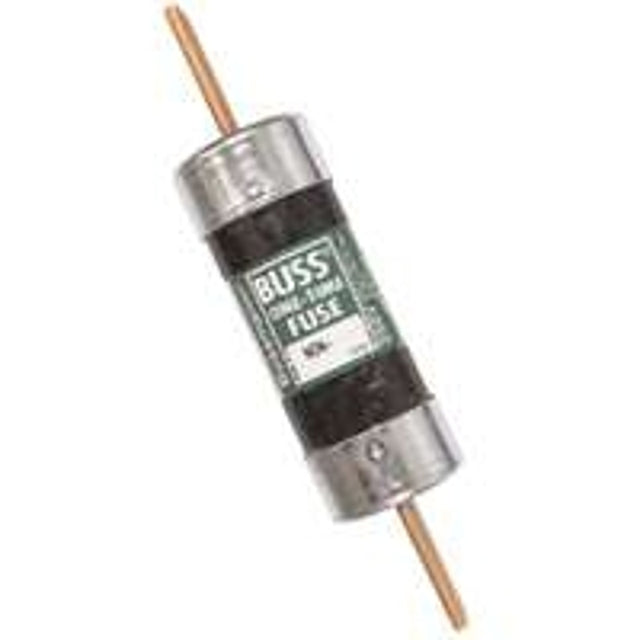

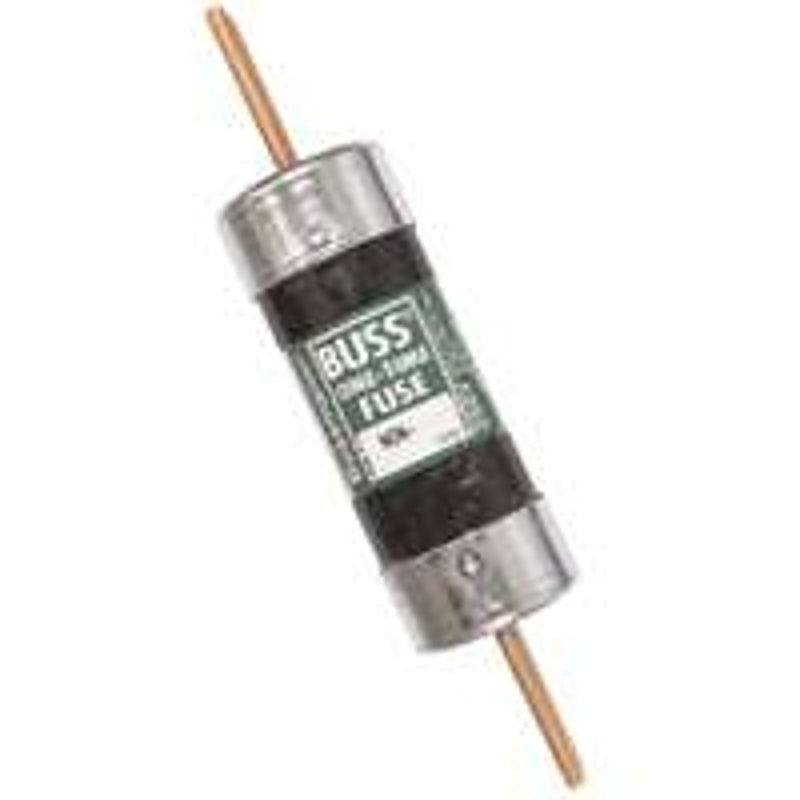

Bussmann NON-100 Fuse, 100 A, 250 VAC, 125 VDC, 10 kA Interrupt, Melamine Body, Cartridge Fuse, 5/PK

$14.57 $19.65
Shipping calculated at checkout.
26% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Protect lighting, heating and other circuits not subject to temporary surges and where available short-circuit currents are relatively low
  • NON one-time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
  • Basic protection 250 V NON Class K5 and H general-purpose, non-current-limiting, one-time fuses

Description
Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General-Purpose fuses have no time-delay and protect fuse panels, appliances and branch circuits.
Unit: EA
UPC: 051712101684
Model Number: NON-100

Additional Information

  • Body Material: Melamine
  • Current Rating: 100 A
  • Diameter: 1.06 in
  • Element Type: Single
  • Fuse Type: Cartridge
  • Interrupt Rating: 10 kA
  • Length: 5.88 in
  • Rejection/Non-Rejection: Non-Rejection
  • Voltage Rating: 250 VAC 125 VDC


Application: For agricultural, commercial and industrial applications as well as air conditioning, pumps, appliances, residential fuse panels and other equipment
