Gates | Our Item #:
MORG4160743
Model Number: G251651212 - UPC : 072053322996

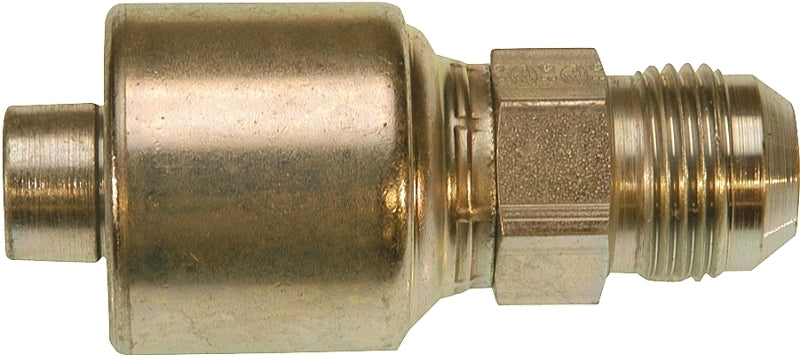

Gates MegaCrimp G25165-1212 Hose Coupling, 3/4 x 1-1/16 in Dia, 3.72 in, 1-1/16-12, Crimp x JIC, Straight Angle, Steel
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$20.70
Regular price
$31.49
Unit price
Unavailable
Shipping calculated at checkout.
Sold out
34% off
Notify me when back in stock
Gates MegaCrimp G25165-1212 Hose Coupling, 3/4 x 1-1/16 in Dia, 3.72 in, 1-1/16-12, Crimp x JIC, Straight Angle, Steel is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Gates MegaCrimp G25165-1212 Hose Coupling, 3/4 x 1-1/16 in Dia, 3.72 in, 1-1/16-12, Crimp x JIC, Straight Angle, Steel is backordered and will ship as soon as it is back in stock.
Features
- Surpassed one million impulse cycles during design testing
- MegaCrimp couplings set a new standard for hydraulic couplings
- The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torqueing by a strong-armed worker
- Crimps on all wire braid hose
- Fully integrated with gates MegaSys hose
- TuffCoat plating
- Large holding shoulder evenly distributes stress forces
- Higher resistance against cracking, even when inadvertently over-torqued
- Less sensitive to material and processing flaws
Description
Description
MegaCrimp couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the "C" insert. This "C" insert allows usage with different constructions and wall thicknesses. In addition, the "C" insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and 2-wire hoses. MegaCrimp couplings are a fully-qualified EN-performance coupling.
Unit: EA
UPC: 072053322996
Model Number: G251651212
Unit: EA
UPC: 072053322996
Model Number: G251651212
Additional Information
Additional Information
- Angle: Straight
- Connection Type: Crimp x JIC
- Cut-Off Length: 1.71 in
- Diameter: 3/4 x 1-1/16 in
- Finish: Zinc
- Hex Size: 27 mm
- Length: 3.72 in
- Material: Steel
- Nominal Size: 1-1/16-12
- Stem Hex Size: 27 mm
- Suitable for: CM2T G1 G1H G2 G2H G2L G2XH G3H G4H GMV GTH GTHX J2AT M-XP M2T M3K M3KH M4 Series Hose
