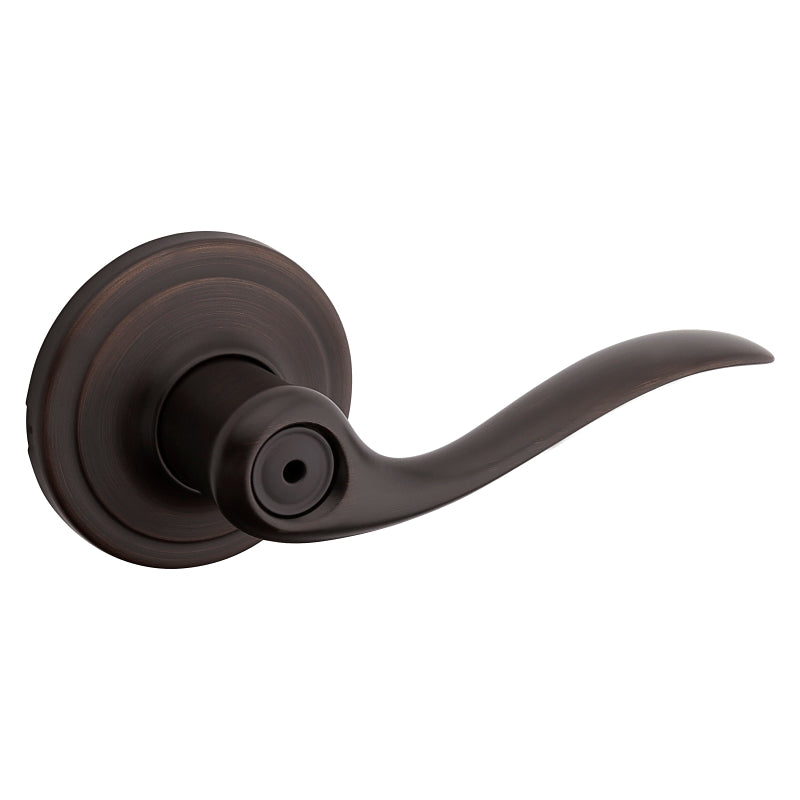

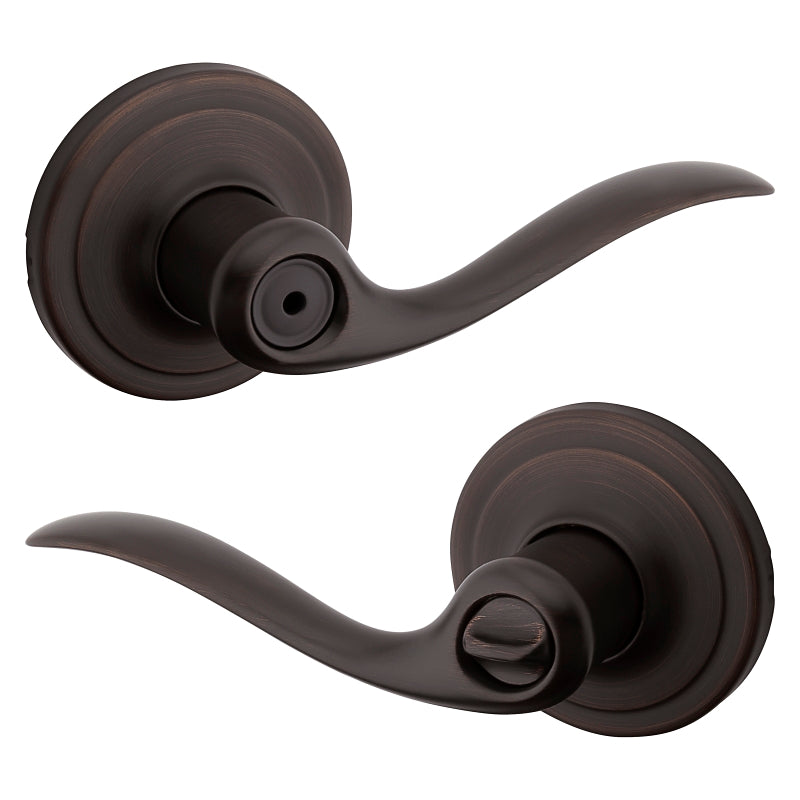

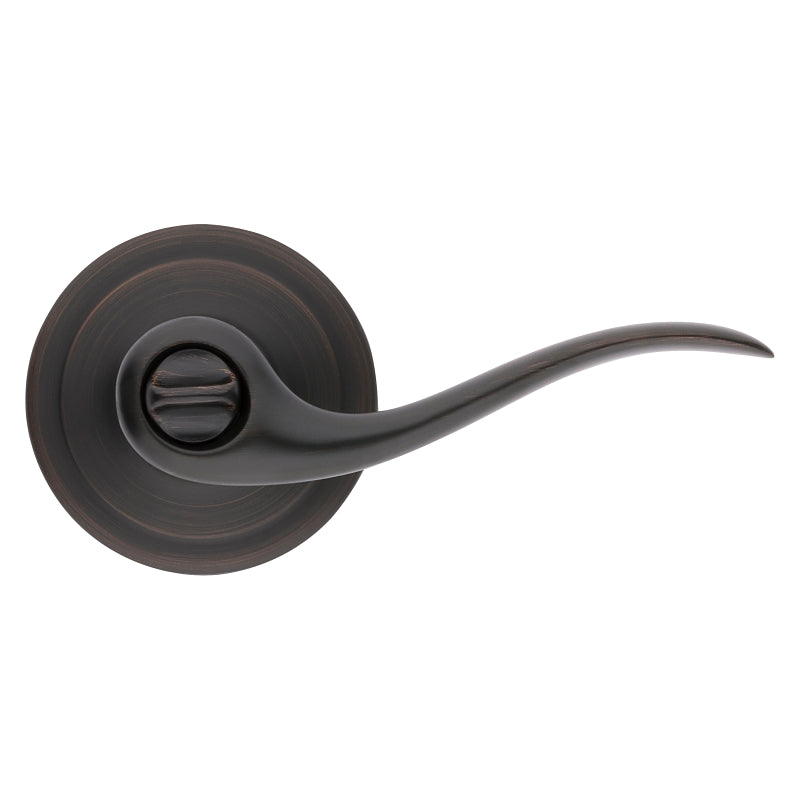

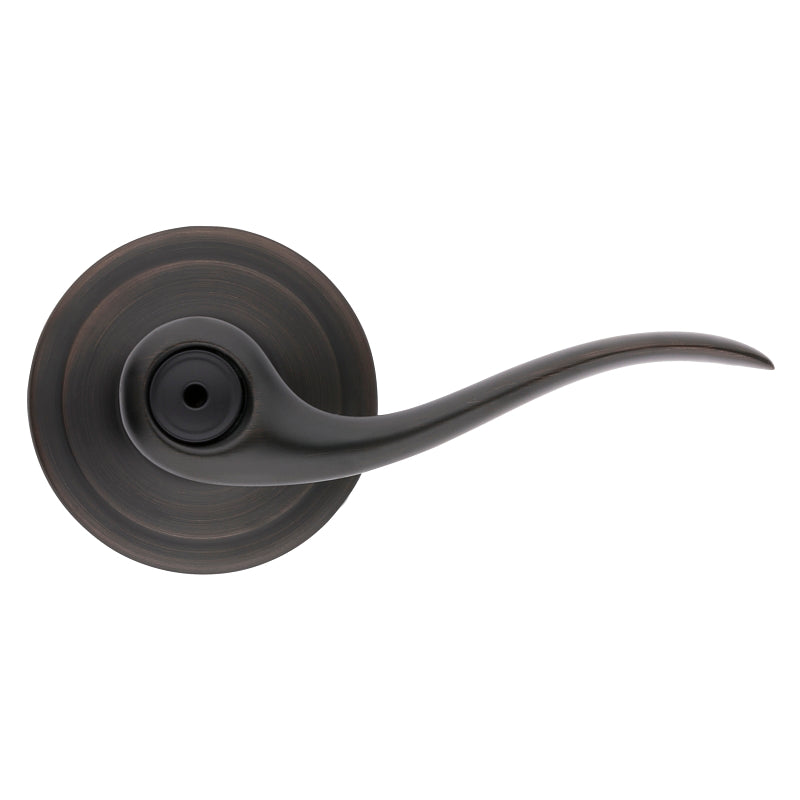

TUSTIN PRIVACY VENETIAN BRONZE

For bedroom and bathroom doors. Inside locks/unlocks by turnbutton. Outside lever unlocks by emergency key. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" standard, 2-3/4" optional. DOOR THICKNESS: 1-3/8" to 1-3/4". FACEPLATE: 1" x 2-1/4". STRIKE: 2-1/4" full lip. BOLT: 1/2" throw. ANSI/BHMA: Grade 2.

Unit: CD

• Backset Size: 2-3/8 x 2-3/4 in
• Bolt Throw Size: 1/2 in
• Cross Bore Diameter: 2-1/8 in
• Dimensions: 2-5/8 in Dia x 2-3/32 in H
• Door Handing: Reversible
• Door Thickness: 1-3/8 to 1-3/4 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Venetian Bronze
• Projection Size: 4-7/32 in
• Security Grade: 2
• Strike Size: 2-1/4 in
• Strike Type: Round Corner
• Suitable for: Bedroom Bathroom Doors
