GATES  |  Our Item #: MORG3908688

Model Number: G251700806 - UPC : 770075446484

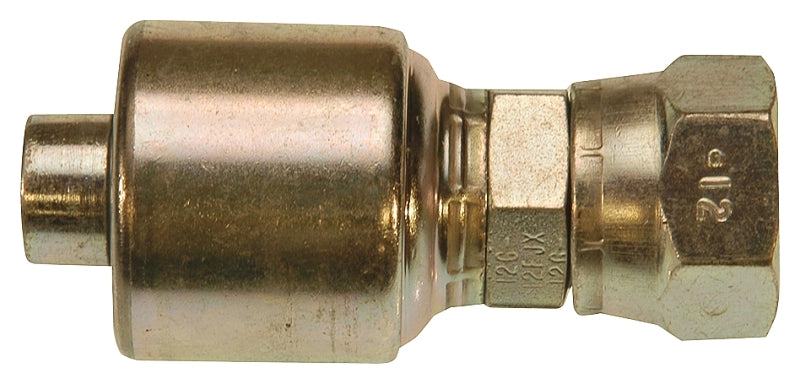

Gates MegaCrimp G25170-0806 Hose Coupling, 9/16-18, JIC, Steel, Zinc

$21.04 $32.19
Shipping calculated at checkout.
Sold out
35% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Surpassed one million impulse cycles during design testing
  • MegaCrimp couplings set a new standard for hydraulic couplings
  • The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean
  • One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torqueing by a strong-armed worker
  • Crimps on all wire braid hose
  • Fully integrated with gates MegaSys hose
  • TuffCoat plating
  • Large holding shoulder evenly distributes stress forces
  • Higher resistance against cracking, even when inadvertently over-torqued
  • Less sensitive to material and processing flaws

Description
MegaCrimp couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the "C" insert. This "C" insert allows usage with different constructions and wall thicknesses. In addition, the "C" insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and 2-wire hoses. MegaCrimp couplings are a fully-qualified EN-performance coupling.
Unit: EA
UPC: 770075446484
Model Number: G251700806

Additional Information

  • Connection Type: JIC
  • Cut-Off Length: 1.19 in
  • Diameter: 1/2 in ID
  • Finish: Zinc
  • Hex Size: 22 mm
  • Length: 2.67 in
  • Material: Steel
  • Nominal Size: 9/16-18
