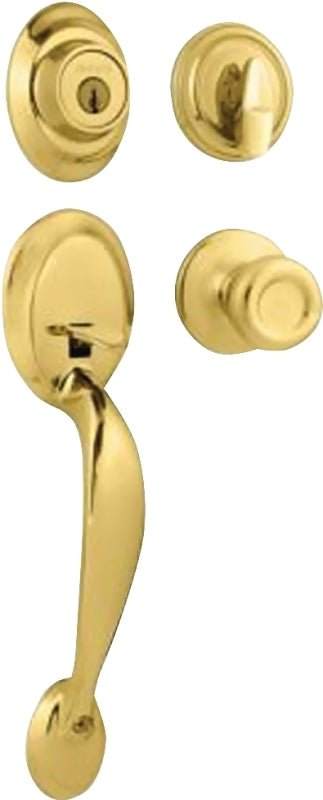

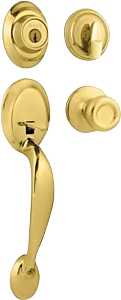

DAKOTA/TYLO HANDLE SMT BRT BRS

Sectional handleset with single cylinder deadbolt. Latchbolt operated by thumbpiece outside and grip inside. Deadbolt operated by key outside and thumbturn inside. Security handlesets feature full 1" solid core throwbolt, all metal mechanisms, anti-pry shield and 5-pin system. DOOR PREP: Deadbolt - 2-1/8" or 1-1/2" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. Handle - 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: Deadbolt - adjustable 2-3/8" - 2-3/4" optional, Handle - dual 2-3/8" - 2-3/4" plainlatch standard. DOOR THICKNESS: 1-3/4" doors. CYLINDER: 5-pin. FACEPLATES: 1" x 2-1/4" round corner. STRIKES: Deadbolt - 1" x 2-1/4" round corner. Handle - 2-1/4" full lip round corner. BOLT: Deadbolt - 1" throw. Handle - 1/2" throw plainlatch. HANDING: Reversible for right or left hand doors. SMT - SmartKey, re-key the lock in less than ten seconds.

Unit: CD

• Backset Size: 2-3/8 x 2-3/4 in
• Backset Type: Universal
• Center to Center: 5-1/2 in
• Cross Bore Diameter: 2-1/8 in
• Cylinder Type: 5-Pin
• Deadbolt Latch Throw: 1 in
• Dimensions: 17-3/16 in H
• Door Handing: Reversible
• Door Thickness: 1-3/4 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Polished Brass
• Grip Center to Center: 8-13/32 in
• Interior Handle Type: Knob
• Keyway Type: KW1
• Material: Metal
• Number of Cylinders: 1
• Plainbolt Latch Throw: 1/2 in
• Re-Key Technology: Smartkey
• Security Grade: 3
• Strike Size: 1 x 2-1/4 in Deadbolt 2-1/4 in Latchbolt
• Strike Type: Full Lip Round Corner
