Square D | Our Item #:
MORG3742475
Model Number: FSG2J20M4BP - UPC : 47569115363

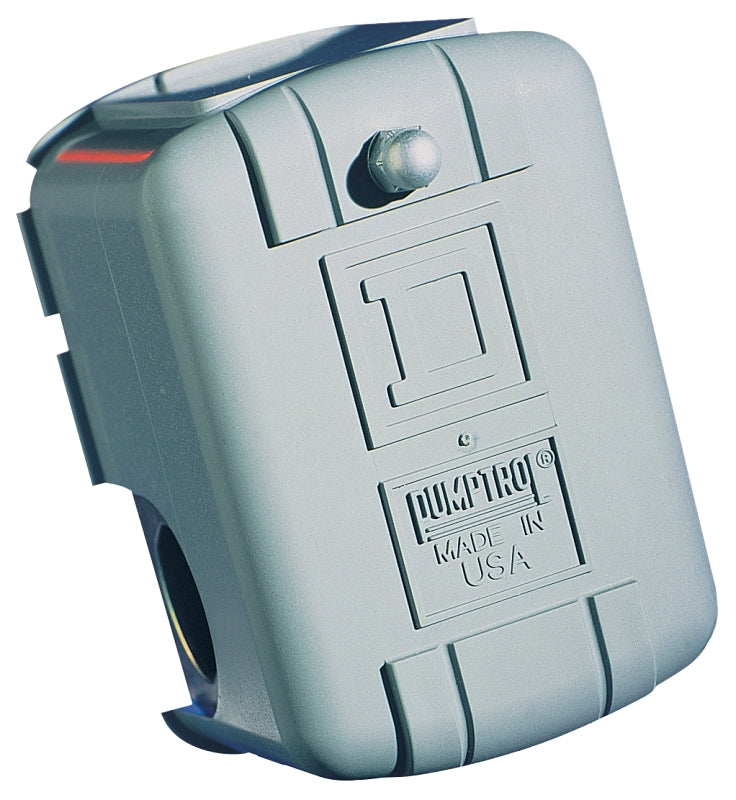

Square D Pumptrol FSG2J20M4BP Pressure Switch, 1-Phase, 115/230 V, NEMA 1 Enclosure
$31.80
$44.39
Unit price
/
Unavailable
Shipping calculated at checkout.
28% off
Square D Pumptrol FSG2J20M4BP Pressure Switch, 1-Phase, 115/230 V, NEMA 1 Enclosure is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Square D Pumptrol FSG2J20M4BP Pressure Switch, 1-Phase, 115/230 V, ...
$31.80
$44.39
Unit price
/
Unavailable
Features
- Adjustable cut-in/out
- Diaphragm actuated
- Long life
- Designed to monitor and control electrically driven water pumps
- These durable pressure switches monitor systems to start and stop a pump at pre-set pressures
- Low pressure cut off
Description
Description
Water pump pressure switch factory set to 20 to 40 psi. Suitable for use on all types of pumps including jet, submersible and reciprocating. 2 Pole, NEMA Type 1 indoor enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA listed, RoHS compliant, NSF61-Annex G certified, includes low-pressure cut-off to stop pump in the event of run dry or a line break. Individually boxed.
Unit: EA
UPC: 47569115363
Model Number: FSG2J20M4BP
Unit: EA
UPC: 47569115363
Model Number: FSG2J20M4BP
Additional Information
Additional Information
- Connection Type: 1/4-18 NPS Female
- Contact Form: 2-Pole
- Enclosure Type: NEMA 1
- Number of Phases: 1
- Operating Cycles: 100000
- Suitable for: Water Pumps
- Voltage Rating: 115/230 V
- Working Pressure: 220 psi
