Sharkbite  |  Our Item #: MORG3689601

Model Number: UR24616A - UPC : 697285069701

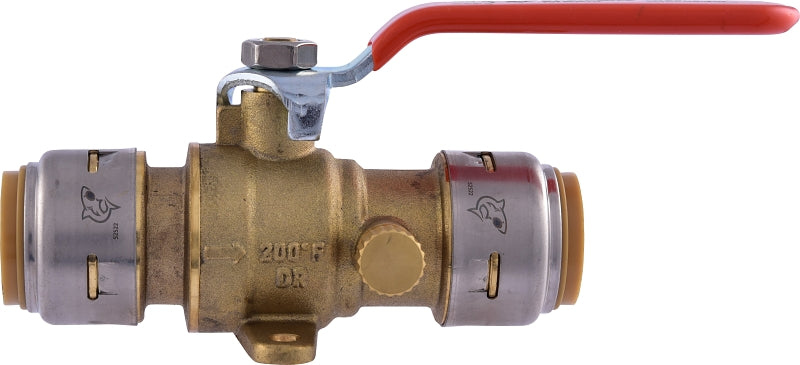

SharkBite UR24616A Ball Valve with Drain and Mounting Tab, 3/4 in Connection, Push-Fit, 250 psi Pressure, Brass Body

Get special pricing! Apply for a business account today.

Apply Now
$30.30 $40.25
Shipping calculated at checkout.
25% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Half the insertion effort for smoother and faster connections, double the burst pressure
  • Can be installed on wet lines and is pressure testable immediately
  • Stainless steel retainer adds strength and durability
  • High-performance DZR lead-free brass body
  • No special tools, crimping, glue or soldering required
  • Can be rotated after installation
  • No tube liner required for PEX
  • Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool
  • Stainless steel collar allows fittings to withstand 2X the burst pressure

Description
SharkBite max ball valves with mounting tabs feature a drain/vent that allows for water to be drained from the line if needed and a mounting tab for stability when attaching the plumbing fixture to other surfaces. Compatible with PEX, copper, CPVC, PE-RT and HDPE SDR-9 pipe in any combination. Innovative push-to-connect design makes for quick and easy installation. Faster install time and ease of use reduces installation errors.
Unit: PK 1
UPC: 697285069701
Model Number: UR24616A

Additional Information

  • Body Material: Brass
  • Connection Size: 3/4 in
  • Connection Type: Push-Fit
  • Dimensions: 2.4 in L x 2.4 in W
  • Handle Material: Steel
  • Media: Water
  • Pressure Rating: 250 psi
  • Softgoods material: EPDM/PTFE
  • Suitable for: Copper CPVC PE-RT PEX or HDPE SDR 9 Pipes
  • Temperature Rating: 200 deg F
