Tork | SKU:
VORG3128865
Model Number: 1109A-O - UPC : 786261101068

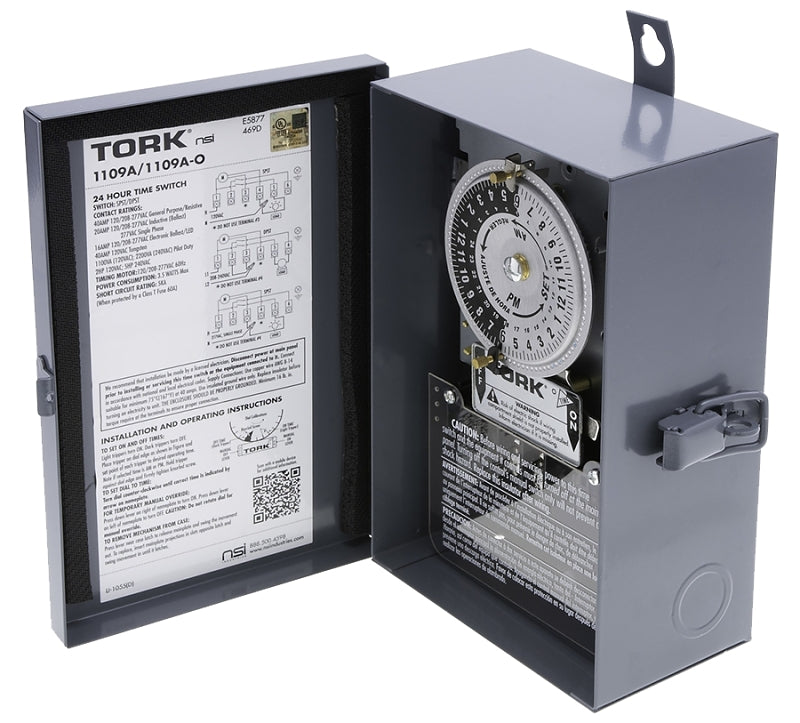

Tork 1109A Series 1109A-O Lighting Timer, 40 A, 120/208/277 VAC, 3 W, 20 to 75 min Time Setting, 24 hr Cycle, Gray
$86.15
$99.15
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Tork 1109A Series 1109A-O Lighting Timer, 40 A, 120/208/277 VAC, 3 W, 20 to 75 min Time Setting, 24 hr Cycle, Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Tork 1109A Series 1109A-O Lighting Timer, 40 A, 120/208/277 VAC, 3 ...
$86.15
$99.15
Unit price
/
Unavailable
Features
- Designed to work with 120/208/277 V applications
- Dust-proof, sealed motor housed in heavy-duty enclosure
- UL certified to control all LED applications
- Easy to override On/Off settings and 24 hr timer dial
- Multiple ratings accommodate many different load requirements
- Commercial-grade design with surge protection
- Indoor/outdoor housings ideal for a variety of applications
Description
Description
Tork 1109A Lighting Timer, Electromechanical, 120/208/277 VAC, 40 A, Wattage Rating: 3 W, Frequency Rating: 50/60 Hz, 2, 5 hp, Contact Configuration: SPST, Cycle Time: 24 hr, Time Setting: 20 to 75 min, IP Rating: NEMA 3R, Temperature Rating: -40 to 149 deg F, Metal, Gray, Suitable for: CFL, Fluorescent, Xenon, LED, Halogen, Incandescent, HID, Includes: (1) Pair Trippers
Unit: CD
Unit: CD
Additional Information
Additional Information
- Color: Gray
- Contact Configuration: SPST
- Current Rating: 40 A
- Cycle Time: 24 hr
- Frequency Rating: 50/60 Hz
- HP Rating: 2 5 hp
- Includes: (1) Pair Trippers
- IP Rating: NEMA 3R
- Material: Metal
- Suitable for: CFL Fluorescent Xenon LED Halogen Incandescent HID
- Temperature Rating: -40 to 149 deg F
- Time Setting: 20 to 75 min
- Type: Electromechanical
- Voltage Rating: 120/208/277 VAC
- Wattage Rating: 3 W
Application: For lighting, pumps, signs, air conditioning, water heaters, fans, automatic On/Off control when operation is required at the same time every day
Warranty: 2 Years
