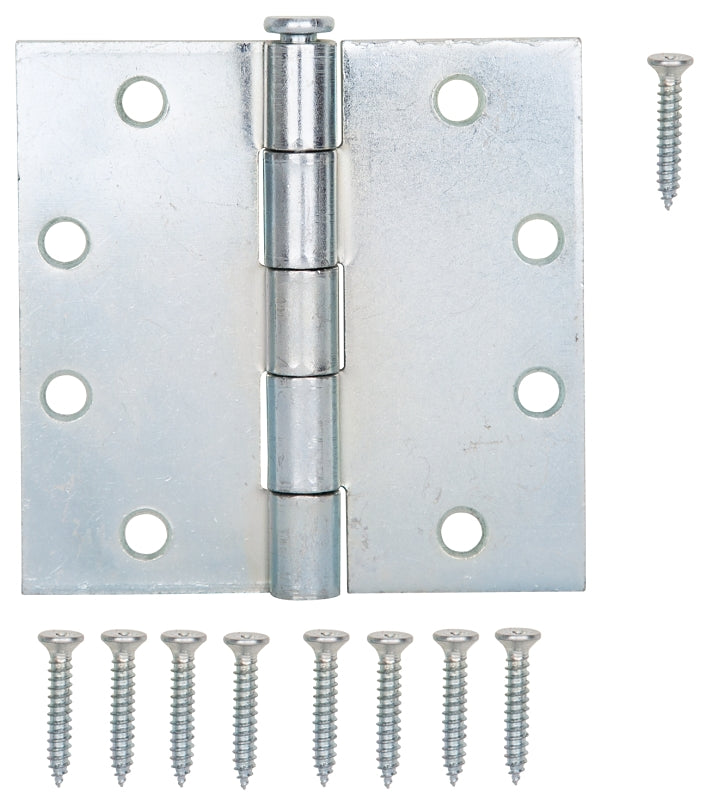

ProSource LR-064-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting

The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.
Unit: CD
UPC: 045734647343
Model Number: LR-064-PS

• Color: Silver
• Dimensions: 4-1/2 in L x 4-1/2 in W
• Door Leaf Height: 4-1/2 in
• Door Leaf Thickness: 3.5 mm
• Door Leaf Width: 2 in
• Finish: Zinc
• Hole Spacing: 8 mm
• Includes: Mounting Hardware
• Knuckle Diameter: 8 mm
• Knuckle Length: 21 mm
• Material: Steel
• Mounting Hole Diameter: 7 mm
• Mounting Type: Full Mortise
• Number of Knuckles: 5
• Number of Mounting Holes: 8
• Pin Diameter: 7 mm
• Pin Type: Removable
• Range of Motion: 180 deg
• Suitable for: Lightweight Doors
• Weight Capacity: 90 (Pair) lb
