Eaton Wiring Devices | Our Item #:
MORG2706513
Model Number: TR270LA-BOX - UPC : 32664665288

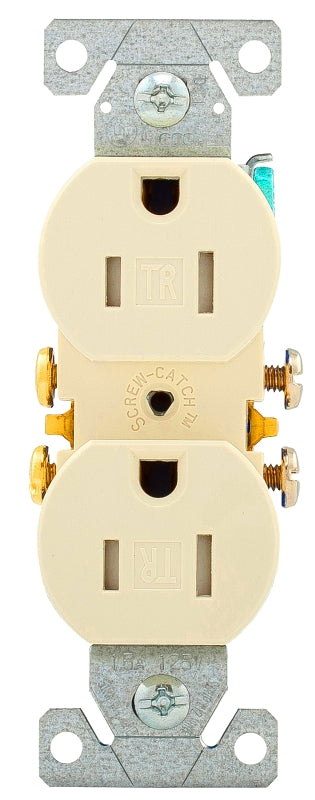

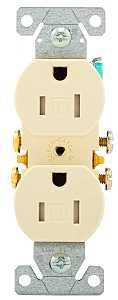

Eaton Wiring Devices TR270LA-BOX Duplex Receptacle, PVC, Light Almond, 2-Pole, 15 A, 125 V, 3-Wire
$1.73
$2.05
Unit price
/
Unavailable
Shipping calculated at checkout.
16% off
Eaton Wiring Devices TR270LA-BOX Duplex Receptacle, PVC, Light Almond, 2-Pole, 15 A, 125 V, 3-Wire is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton Wiring Devices TR270LA-BOX Duplex Receptacle, PVC, Light Almo...
$1.73
$2.05
Unit price
/
Unavailable
Features
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
- TR designation provides visual identification
- Longer, wider strap provides 40% more contact area to wallboard
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- High impact-resistant thermoplastic face and back body eliminates breakage
- Double-wipe ground contacts ensure long term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
Description
Description
Receptacles provide compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. "TR" designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.
Unit: BX
UPC: 32664665288
Model Number: TR270LA-BOX
Unit: BX
UPC: 32664665288
Model Number: TR270LA-BOX
Additional Information
Additional Information
- Color: Light Almond
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.30 in W x 0.69 in D
- Frequency Rating: 60 Hz
- Material: PVC
- Mounting Type: Wall
- NEMA Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Push-in Side
Application: For new residential construction remodel/retrofit residential construction, apartment buildings condominiums and townhouses hotels, motels, inns and suites with kitchenettes retirement communities, nursing homes and assisted living facilities
