RED HEAD | Our Item #:
MORG2148583
Model Number: 12019 - UPC : 092097120198

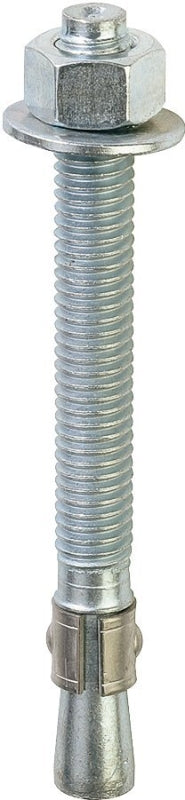

Red Head 12019 Wedge Anchor, 1/2-13 Thread, 1/2 in Dia, 5-1/2 in OAL, Carbon Steel, Zinc, 10/PK
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$20.43
Regular price
$25.39
Unit price
Unavailable
Shipping calculated at checkout.
Sold out
20% off
Notify me when back in stock
Red Head 12019 Wedge Anchor, 1/2-13 Thread, 1/2 in Dia, 5-1/2 in OAL, Carbon Steel, Zinc, 10/PK is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Features
- Versatile fully threaded design is standard on sizes up to 3/4 in Dia and 10 in L
- Anchor diameter equals hole diameter
- 360 deg contact with concrete assures full expansion for reliable working loads
- Non bottom-bearing, may be used in hole depth exceeding anchor length
- Can be installed through the work fixture, eliminating hole spotting
- Inspectable torque values, indicating proper installation
Description
Description
Trubolt Wedge anchors feature a stainless steel expansion clip, threaded stud body, nut and washer. Anchor bodies are made of plated carbon steel, hot-dipped galvanized carbon steel, type 304 stainless steel or type 316 stainless steel as identified in the drawings or other notations. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification. Use carbide tipped hammer drill bits made in accordance with ANSI B212.15-1994 to install anchors. Anchors are tested to ACI 355.2 and ICC-ES AC193.
Unit: PK 10
UPC: 092097120198
Model Number: 12019
Unit: PK 10
UPC: 092097120198
Model Number: 12019
Additional Information
Additional Information
- Diameter: 1/2 in
- Drill Size: 1/2 in
- Finish: Zinc
- Head Type: Hex Nut
- Material: Carbon Steel
- Maximum Work Thickness: 2-3/4 in
- Minimum Embedment Depth: 1-7/8 in
- Overall Length: 5-1/2 in
- Shear Strength: 8160 lb Solid Concrete 6440 lb Lightweight Concrete
- Tensile Strength: 10820 lb Solid Concrete 4800 lb Lightweight Concrete
- Thread Length: 4 in
- Thread Size: 1/2-13
