Raco  |  SKU: VORG1866698

Model Number: 6224 - UPC : 050169062241

Raco 6224 Box, 4-5/8 in W, 4-1/4 in D, 4-5/8 in H, 1-Gang, Cast Iron Box, Gray, Powder-Coated

$101.19 $116.45
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Cast iron, water tight boxes are non-adjustable
  • Gray powder-coat paint inside and out for additional corrosion resistance
  • 1/2 in and 3/4 in threaded conduit openings are standard, all bottom openings are accessible
  • Installs a wood floor electrical outlet
  • Lids provide a watertight seal
  • Non-adjustable floor boxes may be used in wood or concrete floors

Description

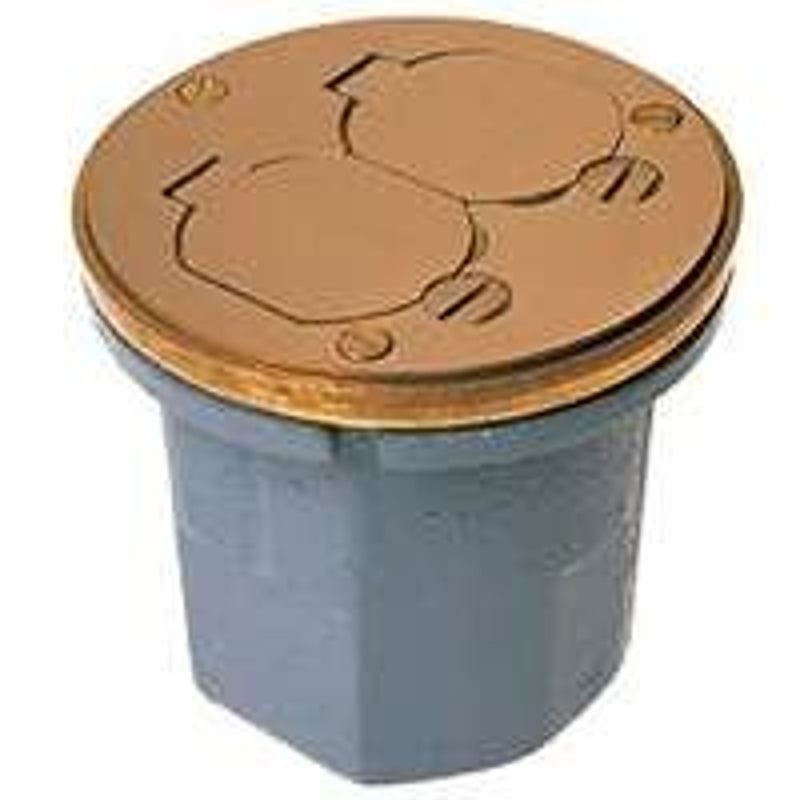

Round duplex receptacle floor box. Duplex cover with lift lids, 2-1/2 in bottom knockout, 18.5 cu-in capacity. Cast iron construction with gray powder coat finish for corrosion resistance. Suitable for carpet, tile or wood floor applications. Mop water tight. If floor covering is used, discard included brass tile flange and replace with Raco 6235 carpet flange. Includes box, brass duplex lift lid cover and brass tile flange. Receptacle not included. UL listed. 4.19 in Dia.

Unit: EA

Additional Information

  • Box Material: Cast Iron
  • Color: Gray
  • Cover Material: Brass/Cast Iron
  • Cubic Capacity: 18-1/2 cu-in
  • Depth: 4-1/4 in
  • Finish: Powder-Coated
  • Height: 4.75 in
  • Includes: Box Brass Duplex Lift Lid Cover Brass Tile Flange
  • Mounting Type: Floor
  • Number Of Gangs: 1
  • Number of Outlets: 2
  • Opening Shape: Round
  • Opening Size: 1/2 x 3/4 in
  • Width: 4-5/8 in


Application: For carpet, tile or wood floors
