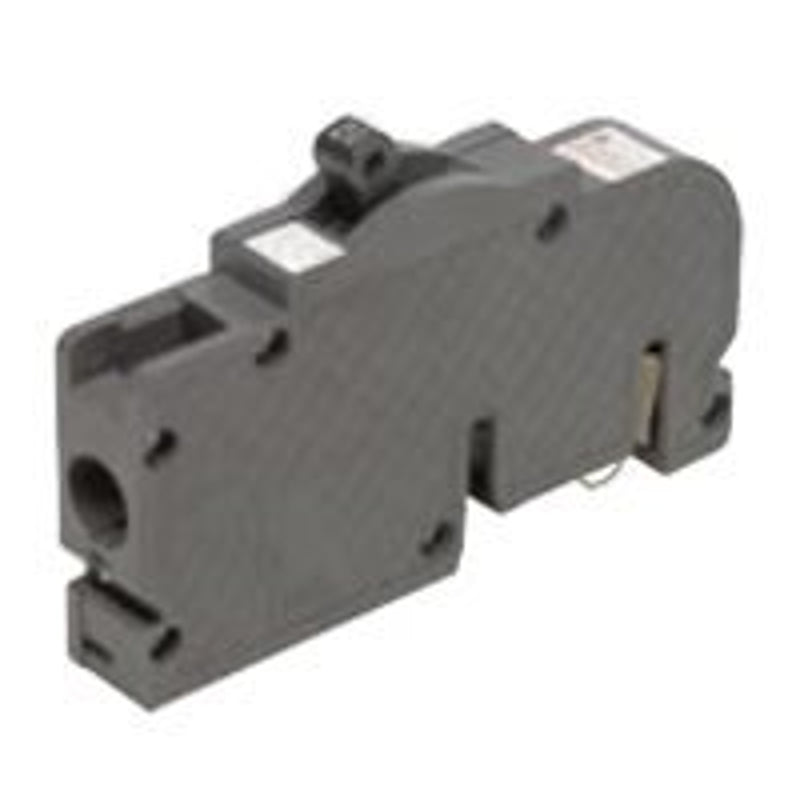

Zinsco UBIZ50 Circuit Breaker, Type UBIZ, 50 A, 1-Pole, 120/240 V, Standard Trip, Plug Mounting, Gray

This Zinsco breaker replacement is designed to be compatible with Zinsco panels that require a type Q breaker. It has a 3/4 in (standard) body, a single pole and is rated for 10 KAIC, 50 A and 120 V, making it compatible with Zinsco electric panels. Each breaker is newly fabricated to provide great protection against over-current and short-circuit conditions.
Unit: EA
UPC: 094925003451
Model Number: UBIZ50

• Actuator Type: Magnetic Thermal
• Color: Gray
• Current Rating: 50 A
• Dimensions: 4.81 in L x 0.75 in W x 2.53 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Operating Frequency: 50/60 Hz
• Operating Temperature: 0 to 250 deg F
• Suitable for: Zinsco Q Series Load Centers Well Pumps and Small Appliance Circuits
• Terminal Type: Lug
• Trip Type: Standard
• Type: Type UBIZ
• Voltage Rating: 120/240 V
• Wire Size: 14 to 4 AWG
